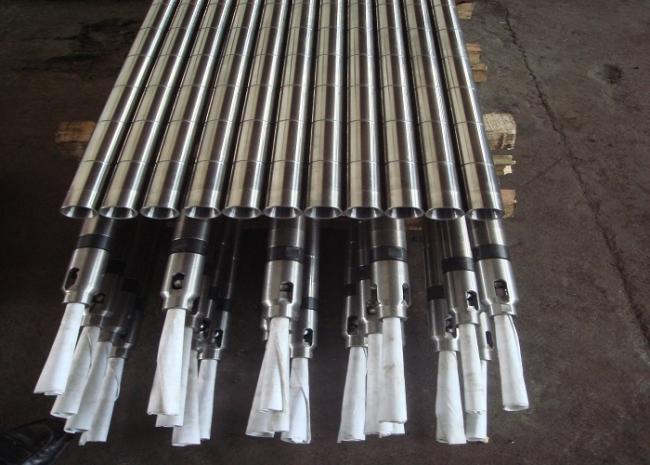

Chrome Plated Pump Barrel B12-150 With Spray Metal Pluger For Oil Well Production

Name: Chrome Plated Pump Barrel B12-150 With Spray Metal Pluger For Oil Well Production
Brand: Puyang Zhongshi Group Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: 1 set

Delivery Time: 10~15 workdays

Brand: Zhongshi

Product Description

API 11AX Chore Plate Pump Barrel B12-150 with Spray Metal Pluger For Oil Well Production

Product Description

Comparing with conventional tubing pump,The API Tubing Pump has better performance in corrosion resistance & antifriction aspects.Plunger of it is nickel plated on alloy base,inside wall of barrel is plated hard cadmium,key parts,such as valve hood,valve ball,are made of materials with excellent mechanical performance and corrosion resistant property.Compared with conventional pump,the series of pump has a longer working life.

Features

1. API certificate

2. Tubing size:15~40 in.co

3. Pump bore: 125-375
4. Barrel length:8-30ft
5. Plunger length:2-7ft

Technical Specifications

Oil and Gas Production Subsurface Sucker Rod Pump(Rod Type)

Specification	Nominal Pump Bore (in)	Plunger Length(ft)	Max.O.D.(mm)	Rod(in)	Tubing(in)	Pump Constant (m3/d)
20-112RHBC	1.12	4~6	46.7	3/4	2 3/8	0.92
20-112RHBM			44.7
20-125RHBC	1.25		47.5	3/4	2 3/8	1.14
20-125RHBM			44.7
25-150RHBC	1.5		59.5	3/4	2 7/8	1.64
25-150RHBM			55.6
25-175RHBC	1.75		59.5	3/4	2 7/8	2.24
25-175RHBM			55.6
30-225RHBC	2.25		72.1	3/4	3 1/2	3.69
30-225RHBM			71.7
