Manual, Specified Time Or Specified Temperature Start Mode TC Series Thermal Profiler

​Standard Composition

1. Thermal profiler 2. Insulation box

3. Temperature test line 4. Data download line

5. Charger 6. Hi-temp adhesive tape

7. Software CD 8. “+” screwdriver 9. Tweezers

10. Insulated gloves 11.Solder wire

12. Scissors 13. Instrument box

14. User Manual 15. Acceptance Certificate

Main Technical Specifications:

1,Thermocouple: K-type thermocouple

2,Sampling interval:0.05sec---600sec Set with software

3,Record data:120000 point/channel, Can record 256 sets profile

4,Resolution: 0.1℃

5,Temperature measuring range: 0—600℃ OR 0—1200℃

6,Temperature measuring accuracy: ±1.0℃

7,Total power: ≤100mW

8,Operating voltage:3.6VDC, rechargeable battery

9,Dimensions: 208(L)×75(W)×15(H)mm 208(L)×75(W)×19(H)mm

10,Insulation box:252(L)×88(W)×30(H)mm

11,Start Mode : Manual, specified time or specified temperature

12,Record mode: Monitor/Record

13,Connection mode:RS232/USB

14,Software version: e-DataPro 2.2

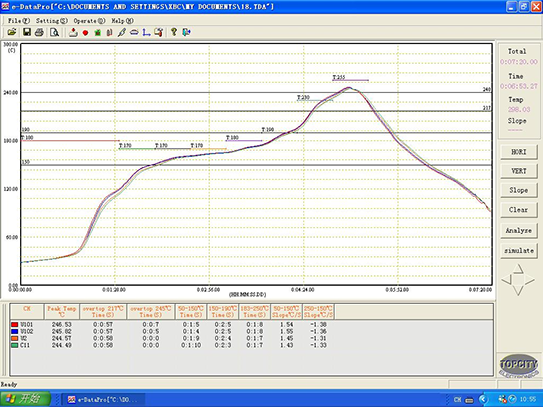

Software main screen

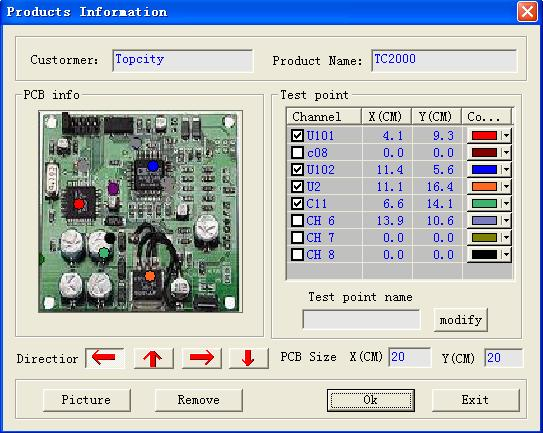

Product information setup

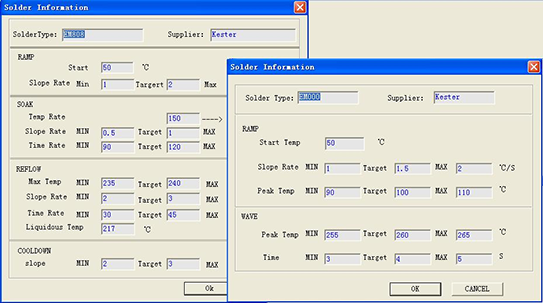

Solder information setup

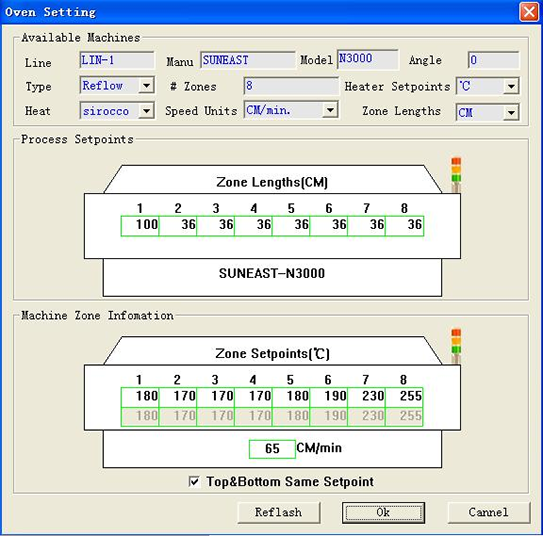

Machine parameter setup

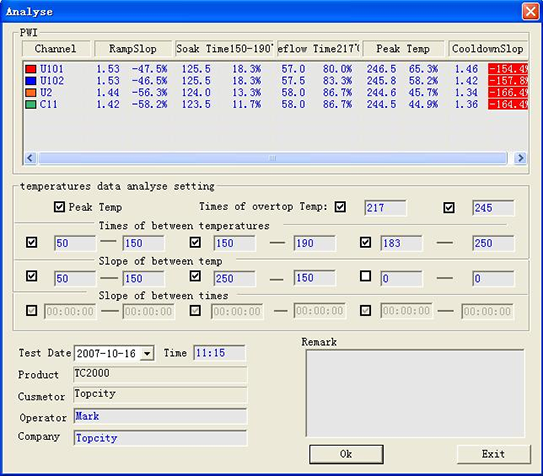

Data analysis:

PWI

Peak Temp,Times of overtop the Temp

Times of between Temp(Reflow)

Slope of between Temp(Reflow)

Slope of between Times(Wave)

Horizontal line and Vertical line setting
