18S 22S 25S 35S 40S Excavator Bucket Teeth Tooth Point And Adapter
Price:
USD5-20/pc
MOQ:
1 pc
Delivery Time:
15-25 work days
Brand:
OilMan
Product Description

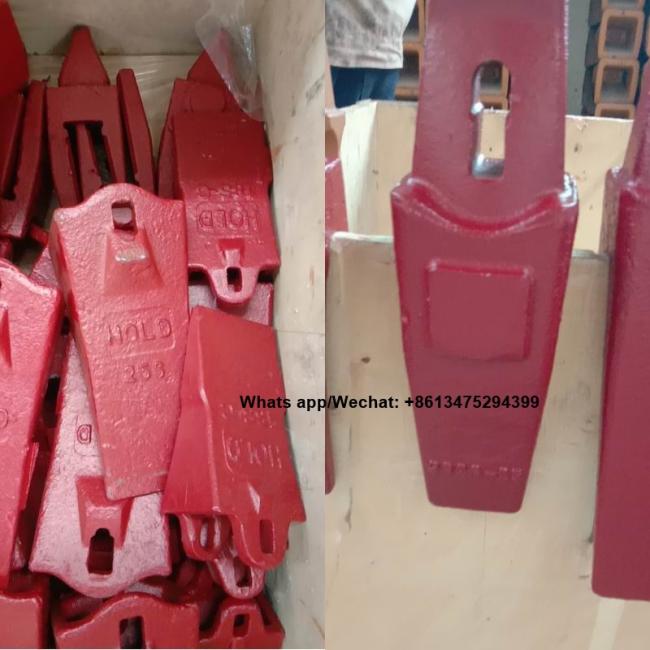

18S 22S 25S 35S 40S Excavator Bucket Teeth Tooth Point And Adapter
Various cutting tools at OILMAN, perfectly matched to different rotary digging machine types , ensure maximum performance of the equipment. The design of the picks varies between the different types depending on the application field and range. The composition and geometry of the teeth should be adjusted to the required applications. And the highest possible economic efficiency is achieved by choosing the correct pick. This depends on the anticipated loads and acting wear mechanism.
E S C0 BUCKET TEETH
| P/N | TYPE | Model | U/W KG | A /mm | B/mm | C/mm | D/mm | A1/mm | B1/mm | C1/mm | Φholes |
| 25T | DRILLING TOOTH | 2.2 | 80 | 74 | 180 | 64 | 62 | 57 | 83 | 11.5 | |
| 25T | ADAPTER | 3.25 | 69 | 70 | 193 | 61 | 56 | 81 | 13 | ||
| 25S | TOOTH | 25S | 2.1 | 79 | 75 | 178 | 59 | 63 | 55 | 89 | 11 |
| 3806-25(25mm) | ADAPTER | 25S | 4.7 | 73 | 82 | 268 | 61 | 54 | 87 | 11 | |
| 30S | TOOTH | 30S | 2.5 | 91 | 74 | 182 | 72 | 76 | 59 | 85 | 12 |
| 25-30 (30mm) | ADAPTER | 30S | 5.1 | 89 | 79 | 280 | 71 | 55 | 85 | 11 | |
| 35S | TOOTH | 35S | 4.3 | 107 | 96 | 211 | 92 | 88 | 68 | 102 | 11.5 |
| 157-35(35mm) | ADAPTER | 35S | 9.6 | 103 | 97 | 345 | 81 | 67 | 100 | 13 | |
| 3803-35(10mm) | ADAPTER | 35S | 7 | 104 | 90 | 320 | 80 | 60 | 102 | 13 | |
| 40S | TOOTH | 40S | 7.1 | 123 | 102 | 250 | 95 | 98 | 81 | 117 | 16.5 |
| 3809-40(40mm) | ADAPTER | 40S | 14.1 | 120 | 106 | 410 | 95 | 82 | 113 | 15.5 | |
| 25-30PN | PIN | 30S | 0.1 | 20 | 9 | 74 |
Mechanical Property
| Material | Hardness | V-Norch | Tensile | Elongation | Yeild |
| T1 | 47-52HRC | akv>=16J | >=1499Mpa | >=3% | >=1040N/mm2 |
| T2 | 48-52HRC | akv>=20J | >=1500Mpa | >=4% | >=1100N/mm2 |
| T3 | 48-52HRC | akv>=20J | >=1550Mpa | >=5% | >=1100N/mm2 |
If any needs, pls contact us freely:
Dongying Machinery Equipment Co.
Address: North Two Road, Dongying City, Shandong Province, China.
Mob/whats app/we chat:+86 13475294399
*Email: christal@oilmancn.com Website:www.oilmanchina.com
