Ink Horizontal Bead Mill Simple Profile Easy Operation Dynamic Separation
Price:
Negotiable
MOQ:
1
Delivery Time:
45DAYS
Brand:
Boyee
Product Description
Large-scale production 30L Horizontal bead mill for making every kinds of INK
Application Possibilities
Printing INK
Coatings
Pigment
Textiles dyes
Magnetic coatings
Fillers
Pesticides
Ores
Minerals
Technical and consumer ceramics
Ceramic masses and glazes
Cosmetics
Foods
Biotechnology:cell disruption
Product Features
- Simple profile, compact conformation and easy operation
- Different choices for material of turbine, such as wear-resistant metal, ceramic and polyurethane
- Dynamic separation or centrifugial separation with big flow, suitable for continuous production or batch production
- Double mechanical seal with high reliability
- Pressure induction protective device and electric protective system, secure and reliable
- Full-ceramic grinding tools to avoid metallic pollution
Specifications
| Grinding Chamber |
Designed Volume: 30L Effective Volume: 21L |
| Inner Chamber material:Silicon Carbide | |
| Outer Materia: SS304 | |
| Grinding Ceramic and rotor material:Zirconia | |
| Cooling Mode: Cooling water passing through grinding chamber | |
| Mechanical Sealing |
Self-developed double acting mechanical seal. Sealing Support : SS304 |
| Dispersion & Grinding structure | Ceramic turbine grinding rotors |
| Dispersing linear speed | 10-14m/sec |
| Separating mode | dynamic slotted screen separation |
| Grinding Media |
95% zirconia beads Zirconia beads spec : Dia 0.3 mm- Dia 1.0mm Filling quantity recommended:70% ᷉ 80% |
| Power | 380V/50Hz |
| Dimension | 1750(L)x 1350(W)x 1850(H)mm |
| weight | 1205Kg |

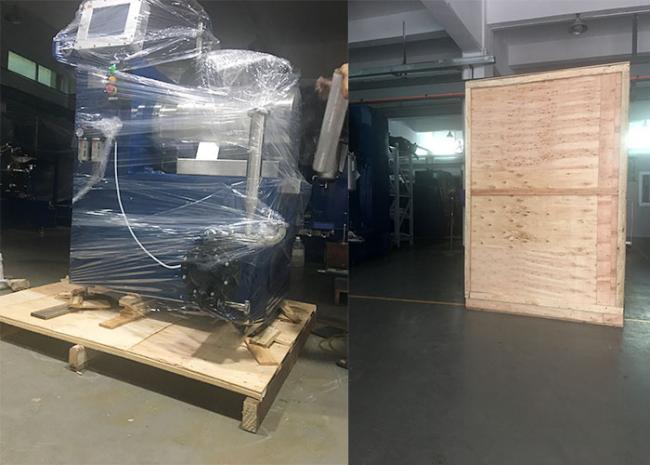

Wooden Package and shipping
