High Reliable 18.5kw Bead Grinding Machine , Horizontal Bead Mill Easily Adjustable

Ink manufacturing machine ,Sand Grinding Mill with technology supporting

Product Description

The high energy media mill can impart more energy to milling media for dispersion than other conventional mills. The geometry of the energizer dispersion tool fluidizes the milling media in toroidal flow pattern to form high energy concentration zones through out the milling chamber. Coaxially positioned discharge port with larger area for media separation helps in promoting the through put. Baffled flow path of coolant and increased heat transfer area makes the dispersion of heat sensitive materials possible. The pressure and temperature inside the mill can be continuously monitored. Main features Rotating Energizer tools at peripheral speed up to 10-14m/S Higher energy concentration zones ensured by Toroidal flow of the milling media State of the art separation system for usage of micro milling media up to 0.1mm nominal size Ability to achieve nano size dispersion Wear resistant surfaces long life of the machine Dispersion of high viscous millbase is possible Appreciably higher throughput rate.

Better heat dissipation for the use with heat sensitive materials Double acting  mechanical seal for sealing the rotating shaft and the milling chamber Effortless removal of the milling chamber on rail helps easy cleaning of the mill Strategically placed media collection tray ensures no wastage of media Easy operation of the mill and simple maintenance Designed for circulation or continuous milling operation Safety Dispersion can be started only when the milling chamber is closed intact Easily accessible emergency button on the machine Options Ceramic coated milling surfaces Explosion proof construction Interlock of mill with temperature and pressure of the milling chamber PLC control & automated production

Product Features

• Simple profile, compact conformation and easy operation
• Different choices for material of turbine, such as wear-resistant metal, ceramic and polyurethane

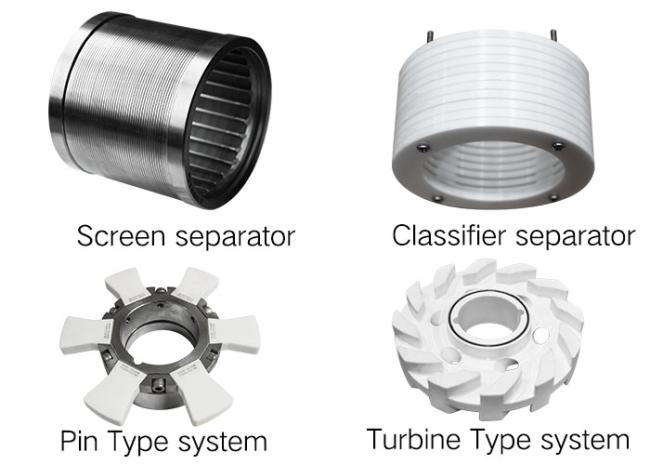

• Dynamic separation or centrifugial separation with big flow, suitable for continuous production or batch production
• Double mechanical seal with high reliability
• Pressure induction protective device and electric protective system, secure and reliable
• Full-ceramic grinding tools to avoid metallic pollution
