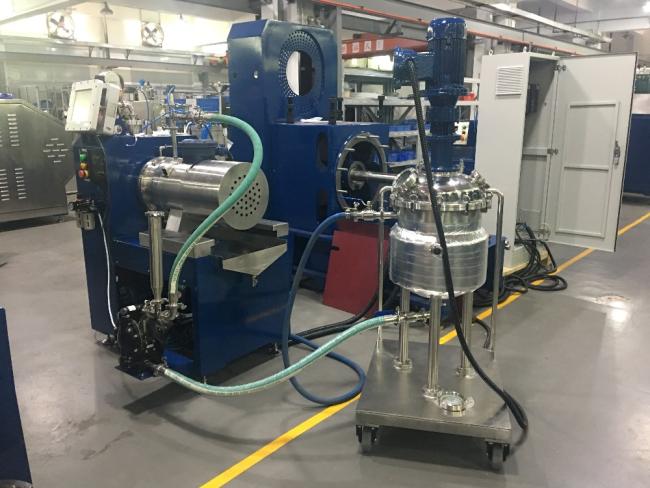

800kg Lab Bead Mill Machine Double Motor Centrifugation Separation System
The necessary energy for dispersion and grinding is transmitted to the grinding beads by the agitator turbine rotors. The mill is fed continuously by a geared pump equipped with speed control drive. The adjustment of time spent in the grinding chamber is performed by variation of the pump speed. The retention of the grinding beads in the chamber is provided by means of an adjustable static gap separation.
With optimum utilization of the energy input into the chamber for dispersion and grinding processes, the efficiency of the MILL is in required level.
-
Specially shaped agitator rotors provide a good energy input and prevent the
packing of grinding beads in one point -
Cooling efficiency increased by spiral flow of the cooling water.
-
Capacity of the mill depends on the type of product and requested fineness.
-
Temperature control is possible for heat sensitive products.
Main Features
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
| Model | Volume (L) | Motor Power (KW) | Medium Size (mm) | Weight (KG) | dimension(mm) |
| NMM-10 | 10 | 18.5 | 0.3-1 | 1280 | 1800*1200*1550 |
| NMM-30 | 30 | 45 | 0.3-1 | 1850 | 1800*1300*1800 |
| NMM-60 | 58 | 75 | 0.3-1 | 2480 | 3290*1478*1950 |
| NMM-90 | 98 | 75-90 | 0.3-1 | 3050 | 3290*1478*1950 |
| NMM-150 | 120-180 | 160 | 0.3-1 | 5280 | 4500*1700*2400 |
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
| Packaging | |
| Size | 1100*550*1650 |
| Weight | 80kg |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
