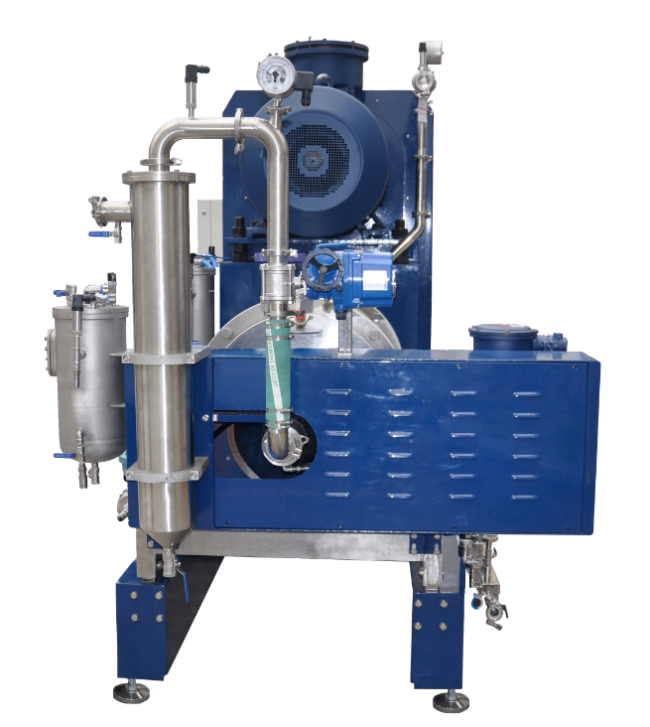

150 L Big Volume Grinding Bead Mills , Sand Grinding Mill Easily Adjustable
Circulation Grinding is a cost-effective solution for grinding large quantities of material as it allows for a lower cost capital investment in equipment and grinding media than with many other grinding equipment options.
Additional benefits of circulation grinding include a narrower particle size distribution, the ability to continuously monitor the slurry, add ingredients to the premix tank at any time during the grinding cycle and control temperature more precisely since the slurry spends only 15-25 seconds in the grinding chamber
Benefits
- Operates in either circulation or continuous mode
- Easily adjustable product discharge openings maximize throughput and accommodate grinding media from 2mm down to 0.05mm
- Large, heavy-duty media separator located at the end of the mill makes service fast and easy
- Production-sized mills include rail systems for easy maintenance and tank removal
- Variable frequency drives are standard
- Systems can be adapted for data acquisition
- Installation requires no anchor bolts or special foundation
Product Features
- Simple profile, compact conformation and easy operation
- Different choices for material of turbine, such as wear-resistant metal, ceramic and polyurethane
- Dynamic separation or centrifugial separation with big flow, suitable for continuous production or batch production
- Double mechanical seal with high reliability
- Pressure induction protective device and electric protective system, secure and reliable
- Full-ceramic grinding tools to avoid metallic pollution
Product Application
It is widely used to produce battery material, electronic paste, digital consumables, non-metallic power (aluminium oxide, aluminium hydroxide, cerium oxide, zirconium oxide, titanium dioxide), pigment, cosmetic, pharmaceutical preparation, jet ink, high-grade ink &paint etc.
| Model | Volume (L) | Motor Power (KW) | Medium Size (mm) | Weight (KG) | Dimension (mm) |
| NMM-10 | 10 | 18.5 | 0.3-1 | 1280 | 1800*1200*1550 |
| NMM-30 | 30 | 45 | 0.3-1 | 1850 | 1800*1300*1800 |
| NMM-60 | 58 | 75 | 0.3-1 | 2480 | 3290*1478*1950 |
| NMM-90 | 98 | 75-90 | 0.3-1 | 3050 | 3290*1478*1950 |
| NMM-150 | 120-180 | 160 | 0.3-1 | 5280 | 4500*1700*2400 |
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
| Packaging | |
| Size | 1100*550*1650 |
| Weight | 80kg |
| Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
