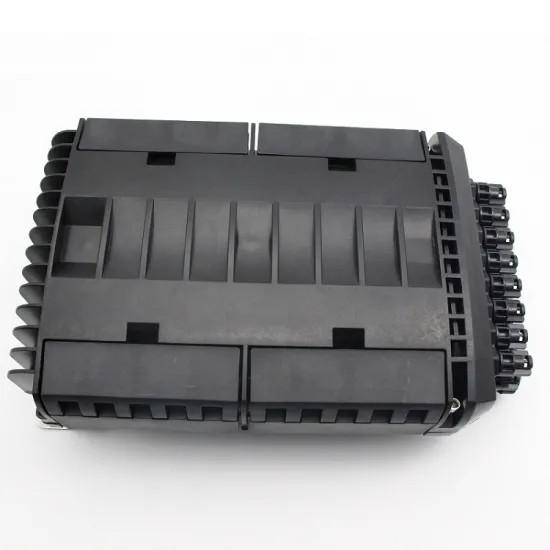

HDS-303B 24 Cores Waterproof Fiber Optic Termination Fiber Access NAP Terminal Box
Price:
USD/6.5-20.5/PCS
MOQ:
10
Delivery Time:
Negotiable
Brand:
HODCY
Product Description
HDS-303 96 Cores Fiber Optic Termination Box Fiber Access NAP Terminal Box
Features:
● Water-proof design with IP-65 Protection level.

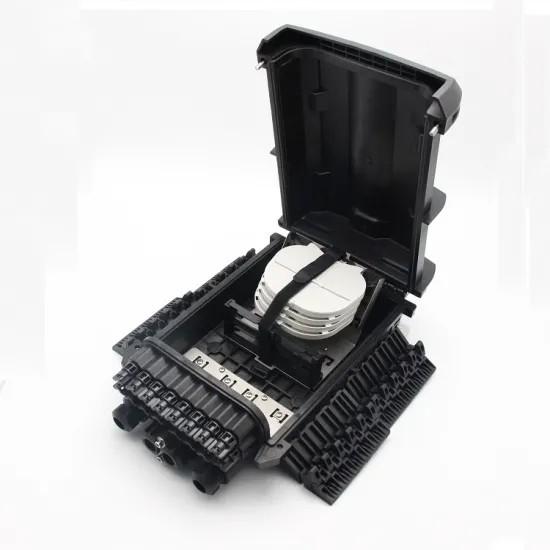

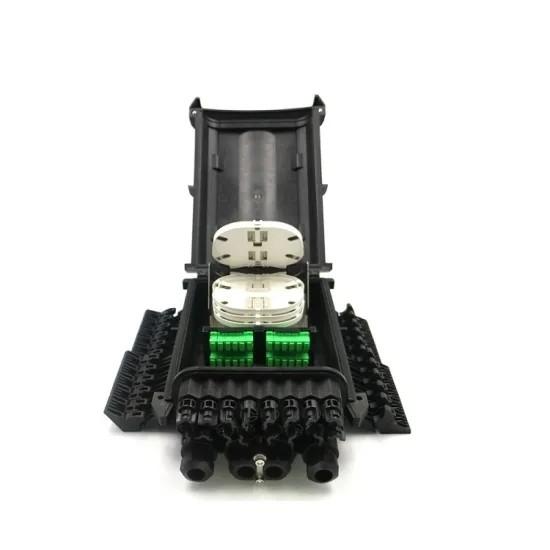

● Integrated with flap-up splice cassette and adapter holder.
● Maximum 12F splice capacity,stainless anti-rust bolts and nuts.
● Easy for maintainance and expansion,neat cabling.
● Fiber bend radius control more than 40mm.
● 180 degree access with buckled lock structure.
● 2pcs of 1*8 PLC splitter can be installed

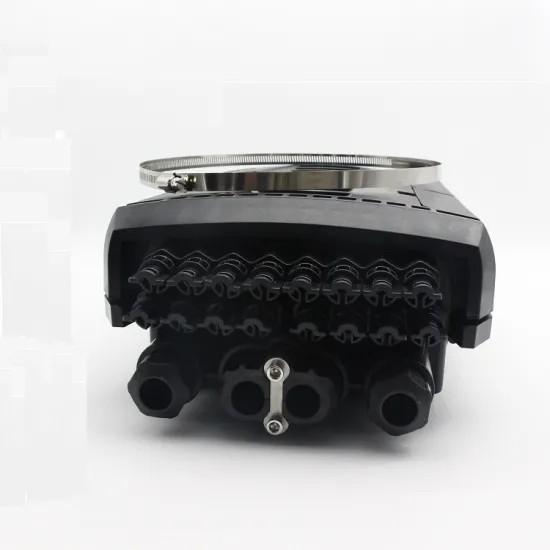

● 16pcs of mechanical ports for 3-7mm drop cable.
● 1 mid-span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrances for distribution cable gland(8-13.5mm)
Application:
widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks
● Water-proof design with IP-65 Protection level.
● Integrated with flap-up splice cassette and adapter holder.
● Maximum 12F splice capacity,stainless anti-rust bolts and nuts.
● Easy for maintainance and expansion,neat cabling.
● Fiber bend radius control more than 40mm.
● 180 degree access with buckled lock structure.
● 2pcs of 1*8 PLC splitter can be installed
● 16pcs of mechanical ports for 3-7mm drop cable.
● 1 mid-span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrances for distribution cable gland(8-13.5mm)
Application:
widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks

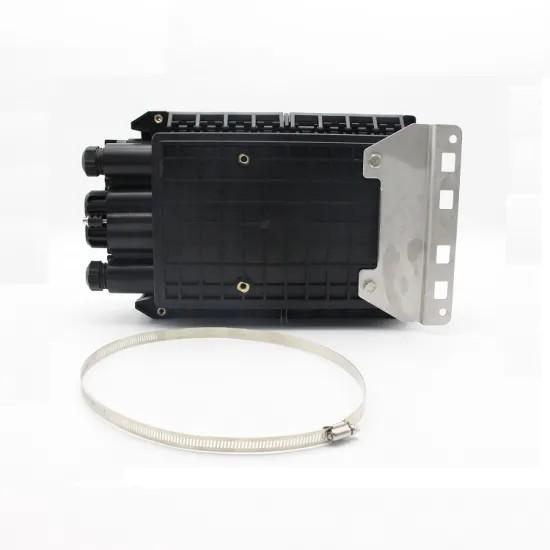

wall-mounted &pole-mounted& Aerial-hanging installation
Suitable for 2*3mm indoor FTTH drop cable an outdoor4-7mm figure-8 self-supporting drop cable
Suitable for 2*3mm indoor FTTH drop cable an outdoor4-7mm figure-8 self-supporting drop cable
Specifications:
| Product name | Specification | Unit | Quantity | Remark |
| Box bottom | PCS | 1 | ||
| Box cover | PCS | 1 | ||
| Cable holder | SET | 1 | Stainless steel | |
| Installation holder | PCS | 1 | Stainless steel | |
| Splice tray panel | SET | 1 | ||
| Adapter panel | SET | 1 | ||
| Sealing part for drop cable | PCS | 24 | The color is same as box body’s | |
| Sealing part for inlet cable port | SET | 1 | ||
| Sealing part for box body | PCS | 1 | The color is same as box body’s | |
| Buckle | PCS | 4 | The color is same as box body’s | |
| Lock | SET | 1 | ||
| Splice tray | 12cores | PCS | 4 | |
| Adapter | PCS | 24 | Can be optional as customer’s request | |
| Pigtail | PCS | 24 | Can be optional as customer’s request |
