Gr2 Flat Face Hex Titanium Flange Bolt M6 M8 M10
Titanium Gr 2 Flange Hex Flange Titanium M6 Bolt Titanium Flange M8 M10

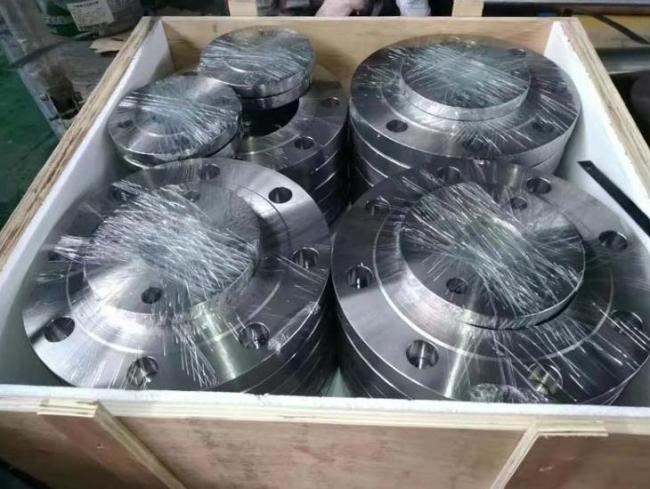

Titanium Industries selection of Grade 2 Titanium Flanges
Titanium Industries carries a wide range of Grade 2 Titanium blind flanges, Titanium weld neck flanges, and Titanium slip-on flanges that range from 1/2” (1.26 lbs) to 24” (461 lbs). Titanium Industries carries a wide selection of Titanium Pipe Fittings.
Dimensional tolerances conform to ASME B16.5. Flange bore diameters agree with standard ASME B36.9M Sch-40S wall pipe. Other bore diameters can be supplied on special order.
Flat Face Titanium Flanges are supplied with a serrated spiral finish per ASME B16.5 Other gasket surface finishes can be supplied on special order. Titanium flanges are permanently marked by electro-chemical etching in accordance with ASME B16.5.
Estimated Titanium flange weights are based on a density of .163 lbs/cubic inch.
| Name | Titanium flange |
| Grade | GR1, GR2, GR5, Gr7, Gr12 |
| Type | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST flange |
| Process | Forging - Machining |
| standard | HG/T20592-2009 |
| Surface | Bright / Pickling |
| Shape | Customized |
| Applications | For Marine detection equipment, chemical equipment, auto parts, aircraft parts, electrical equipment, environmental testing equipment, Asphalt upgrader. Heavy oil refinery. Nuclear power (mostly seamless). Petrochemicals and Acids. |
Titanium butt weld flanges have perfect strength, extremely hard bearings and many other features. These can be used in marine applications, the chemical industry, and many other forms. It offers high performance and the package is finished safely. This is easy to install and can be used in a variety of other applications such as chemical and mechanical. Titanium flanges are available in many other standards and materials.
The core use of flanges is in the chemical and water treatment fields, where titanium flanges are required due to the low weight-to-cost ratio, we currently supply titanium flanges to several chemical engineering plants around the world and have a good history in this field.
We keep a large selection of titanium flanges available for immediate shipment at unbeatable prices on the market. We are confident to provide our customers with the highest quality flanges at the lowest market price
