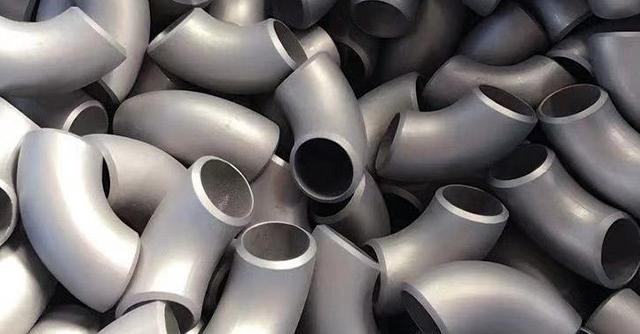

TA1/ TA2 Titanium Metal Elbow 0.7 - 10mm Thickness Polished Titanium Tee

Factory direct supply TA1/ta2 titanium metal titanium elbow titanium tee

Heat Treatment

UO method

The UO method is used to manufacture medium-sized elbows, tees and reducers. The plate is cut into a specially designed shape, first it is formed into a U shape using a die and then another die is used to shape it into an O shape or a tube, which is why the method is called the UO method.

Once the fitting is made into the tumbler shape, it is welded from the inside and outside of the closed seam. Large titanium elbows are welded from two separate plates. The prepared titanium elbows are also heat treated and machined before visual and dimensional inspection.

Thermoforming method

In the thermoforming mold bending method, the tube is heated to the forming temperature and formed in a mold with a specific shape, and this process can be repeated as needed to obtain the desired shape, size and wall thickness.

Thermoforming methods are typically applied to thick walled elbows that cannot be bent on a mandrel die

Description:

Competitive Advantage:

The company is a deep processing enterprise mainly focusing on rare and refractory metals. It has a group of high-quality engineering and management personnel who have been engaged in professional production for decades. The company adopts advanced production technology and is equipped with modern production equipment and inspection equipment. It mainly produces rare refractory metal materials and deep-processed products, various vacuum coating targets, industrial furnace vacuum furnaces, heating chambers (molybdenum insulation in vacuum furnaces) screen, heating belt, molybdenum support rod, molybdenum screw screw, molybdenum backing plate, molybdenum crucible, molybdenum electrode rod, etc.), tzm plate rod, tungsten, molybdenum, tantalum, niobium, zirconium, titanium, chromium. Nickel plates, sheets, Rods, strips, wires, tubes, rings, cups, wafers, crucibles and special-shaped products. It has been widely used in rare earth, magnetic materials, steel, machinery, metallurgy, glass, petrochemical, national defense research, aerospace, and vacuum coating industries. The company entrusts Baoti Group's laboratory to carry out strict testing on the composition and performance of the raw and auxiliary materials of each product. In the process of product processing, various mechanical, spectral analysis, and non-destructive testing measurements are also carried out to ensure that the products are manufactured from the ground up. Process inspection, finished product inspection, and after-sales service all have a complete quality assurance system, which strictly guarantees the quality of the factory products!

Applications:

It is a metal pipe fitting that changes the direction of the pipe on the titanium pipe. Connection methods include threaded connections and welding. According to the point of view, the more commonly used are 45° and 90°180°, and other abnormal elbows such as 60° are also included according to the needs of the project.
