99.8% Titanium Sheet Metal ASTM B265 1 Inch Titanium Plate
Forging Titanium Alloy Sheet / Non Toxic Medical Titanium Plate 99.8%
Titanium Alloy Sheet Application
machinery and equipment, electroplate
equipment, medical and all kinds of precision parts and other
industries
Titanium Alloy Sheet Advantage:
- light weight, hight strength, good corrosion resistance, low density.
- Techinal standard: Final product test, Ultrasonic test, Eddy current test, Hydraulic test,
- Best service:Can be customized and shipment quickly .
Titanium Alloy Sheet Description:
| Product name | Gr5 titanium plate |
| Material grade | Gr1,Gr2, Gr4,Gr5,Gr7, Gr9, Gr23, TI-6Al4v, |
| Certificate | ISO9001:2008,TUV, material test certificate EN10204.3.1 |
| Standard | ASTM B265/ASME SB265,AMS4911,ASTM F136,ASTM F67 |
| Tehnique | Hot/cold rolled |
| Surface | Acid wash,polished |
| Dimensions | Thickness:0.3-100mm |
| Width:20-1220mm | |
| Length:500-6000mm |
CHEMICAL REQUIREMENTS
| Fe | O | N | C | H | Pd | Al | V | Mo | Ni | |
| Gr1 | 0.2 | 0.18 | 0.03 | 0.1 | 0.015 | / | / | / | / | / |
| Gr2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | / | / | / | / | / |
| Gr3 | 0.25 | 0.3 | 0.05 | 0.1 | 0.015 | / | / | / | / | / |
| Gr4 | 0.5 | 0.4 | 0.05 | 0.1 | 0.015 | / | / | / | / | |
| Gr5 | 0.4 | 0.2 | 0.05 | 0.1 | 0.015 | / | 5.5-6.7 | / | / | / |
| Gr7 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 0.12-0.25 | / | / | / | / |
Titanium Alloy Sheet Specifications:
We support to customize titanium plate as your requiry. The general stock size is THmmx1000mmx2000mm
Thickness(0.5mm-0.7mm)*Width≤1000mm*L≤2000mm
Thickness(0.8mm-4.0mm)*Width≤2000mm*L≤6000mm
Thickness(5.0mm-50mm)*Width≤2000mm*L≤6000mm
Thickness(60mm-100mm)*Width≤2000mm*L≤6000mm

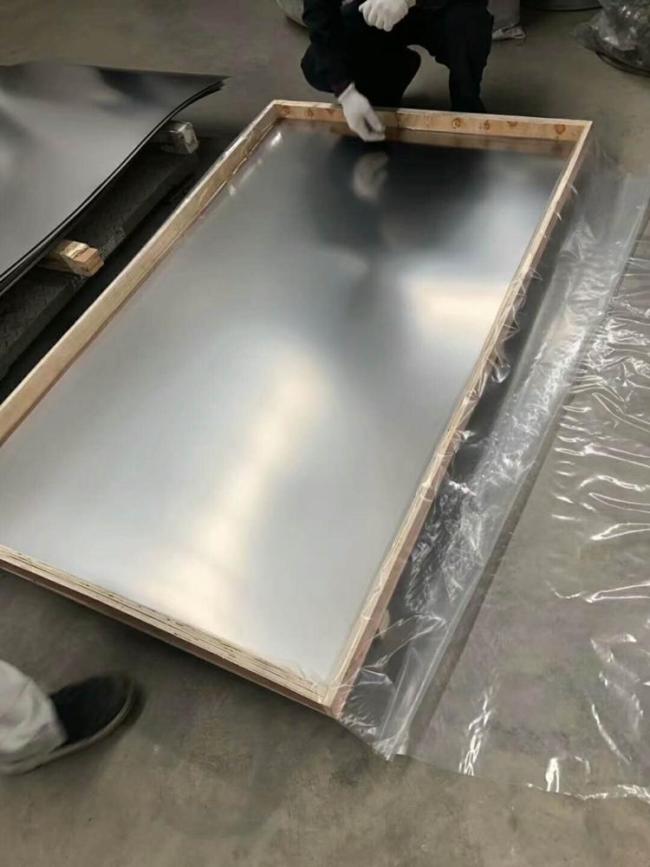

Titanium Alloy Sheet Details
Competitive Advantage:
We have more than ten years of experience in building titanium’s factory,which includes almost one thousand employees.our factory located in baoji,titanium valley.we strictly control every process of production and strive to provide customers with high quality products,And our products sale to all over the world.
