Gr1 Gr2 Gr5 Aerospace Titanium Sheet Metal 99.6% Cold Rolled
Price:
Negotiable
MOQ:
Negotiation
Delivery Time:
Depend on real situation,AS general:2-15days
Brand:
NewFuture Titanium
Product Description
Gr1/Gr2/Gr5 Grade Titanium Metal Plate Excellent Corrosion Resistance
Titanium Metal Plate Feature:
- Low Density
- Excellent Corrosion Resistance in acid and alkali salt
- High heat transfer capability
- Good biocompatibility
- Low elasticity module
- Low thermal expansion coefficient
- Superior strength-to-density ratios
- Good strength at low and high temperature.
Titanium Metal Plate Applications:
- Chemical Industry,
- Electroplating equipment
- Precision instruments
- Environmental protection equipment
- Auto industry
- Medical and Sports industry
- Electric power industry
Titanium Metal Plate Description:
| Product name | Gr1/Gr2/Gr5 Grade Titanium Metal Plate Excellent Corrosion Resistance |
| Material grade | Gr1,Gr2, Gr4,Gr5,Gr7, Gr9, Gr23, TI-6Al4v, |
| Certificate | ISO9001:2008,TUV, material test certificate EN10204.3.1 |
| Standard | ASTM F136,ASTM F67 |
| Tehnique | Hot/cold rolled |
| Surface | Acid wash,polished |
| Dimensions | Thickness:0.3-100mm |
| Width:20-1220mm | |
| Length:500-6000mm |
CHEMICAL REQUIREMENTS
| Fe | O | N | C | H | Pd | Al | V | Mo | Ni | |
| Gr1 | 0.2 | 0.18 | 0.03 | 0.1 | 0.015 | / | / | / | / | / |
| Gr2 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | / | / | / | / | / |
| Gr3 | 0.25 | 0.3 | 0.05 | 0.1 | 0.015 | / | / | / | / | / |
| Gr4 | 0.5 | 0.4 | 0.05 | 0.1 | 0.015 | / | / | / | / | |
| Gr5 | 0.4 | 0.2 | 0.05 | 0.1 | 0.015 | / | 5.5-6.7 | / | / | / |
| Gr7 | 0.3 | 0.25 | 0.03 | 0.1 | 0.015 | 0.12-0.25 | / | / | / | / |
| Gr9 | 0.25 | 0.15 | 0.02 | 0.05 | 0.015 | / | 2.5-3.05 | / | / | / |

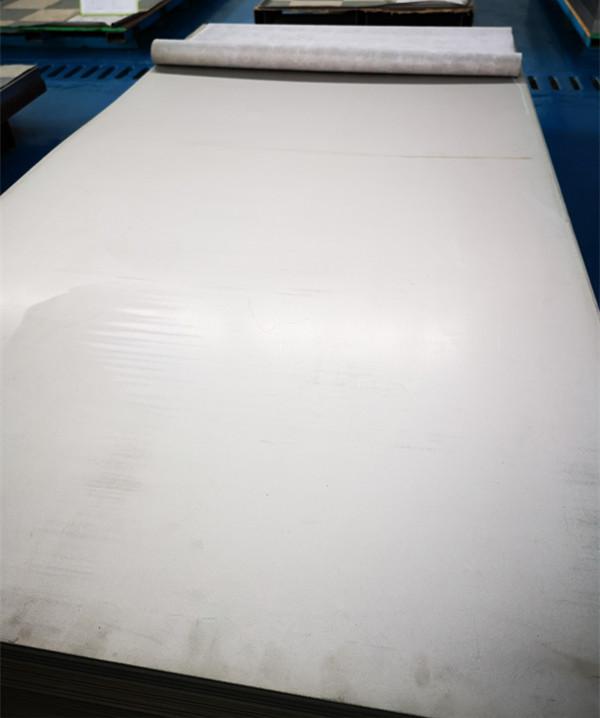

Titanium Metal Plate Details
Competitive Advantage:
We have more than ten years of experience in building titanium’s factory,which includes almost one thousand employees.our factory located in baoji,titanium valley.we strictly control every process of production and strive to provide customers with high quality products,And our products sale to all over the world.
