Metal Elevator Door Photocell Full Height 100000 Lux 4m Detecting Range
Metal Elevator Door Photocell Full Height 100000 Lux 4m Detecting Range
Ningbo WECO Optoelectronics CO., LTD. developed elevator full height photocell since 1998. Also this K profile full height door sensor is widely used and purchased because of slim thickness and special structure. The clients always install this WECO-917K model door sensor on passenger lift and cargo lift.
Morever, WECO-917K model elevator door photocell can connect with our Parted 3D model door photocell to achieve 3D protection function.
Specifications
| Technical Parameter | 917K6 | 917K7 |
| Number of Infra Red Diodes | 17 Diodes | 32 Diodes |
| Response Time | 45ms relay output | 61ms relay output |
| 21ms transistor output | 37ms transistor output | |
| Scanning Beams | 99-33 Beams | 154-94 Beams |
| Detecting Height | 20-1841mm | |
| Redundary Function | NO | YES |
| Operation Temperature | -20℃-+65℃ | |
| Detecting Range | 0-4m | |
| Light Immunity | 100000Lux | |
| Protection Level | IP54 | |
| EMC | ||
| EN12015 | General Circuit Level | |
| EN12016 | ||
| Voice Reminder | after continuous detection for 15s, buzzer ON. | |
| LED Interpretation | Yellow Led power indicator and red LED status indicator in receiver is on when blocked or in malfunction. | |
| Yello LED power indicator in receiver is on and red LED status indicator in receiver is off without blocked. | ||
Mounting Holes:

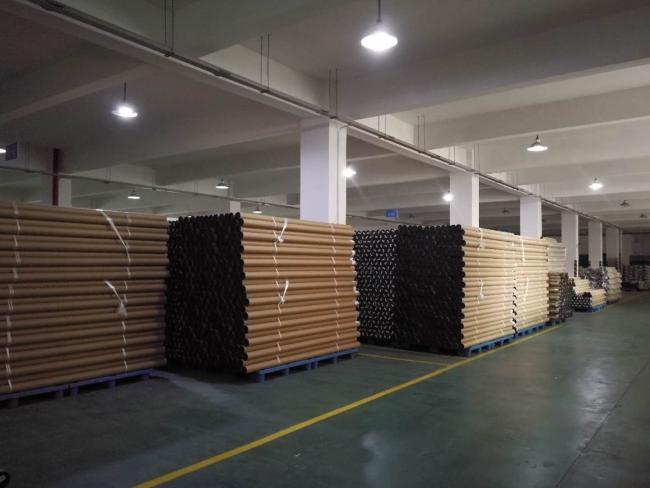

Package
Every piece packed in tube,five tubes in a bundle;
Each tube includes:
Power supply control unit:(1pieces)
Durable flexible cable: (2cables)
Transmitter: (1pieces)
Receiver: (1pieces)
User Manual: (1copy)
Mounting accessories: (1 set)
Why choose this model?
* WECO-917K model elevator door detector has better prevent from dust / water protection because of special structure.
Flexible to fix the mounting hole makes more easier during installation
* Otis choice model
Notice
--- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in door sensor manufactuering and designing.
--- We have two automatic production lines to ensure good quality and fast delivery time.
--- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO.
