Ningbo WECO Optoelectronics CO., LTD. developed elevator light curtain since 1998. And in 2004 year, WECO brand is already well known in China market.
WECO has 917, 957 and 987 series elevator light curtain. WECO-917T profile is similar like cedes light curtain dimension. For more techinical details please kindly see below table.
Besides, the T model not only can be installed from in front side, but also can be installed from side.
Specification
| Technical Features | 917T6 | 917T7 | |
| Number of Infra Red Diodes | 17 Diodes | 32Diodes | |
| Response Time | Relay Output | 45ms | 61ms |
| Transistor Output | 21ms | 37ms | |
| Scanning Beams | 94~33 Beams | 154~94 Beams | |
| Infrared Diodes Range | 117.5mm | 58.8mm | |
| The Mimimum Door Opening | ≤20mm | ||
| The Maximum Door Opening | ≥1800mm | ||
| Redundancy (one transimitter shielded after 120s detected absent) | NO | yes | |
| Detecting Range | 0-4000mm | ||
| Operation Temperature | -20℃~+65℃ | ||
| Light Immunity | 100000 Lux | ||
| Protection Level | IP54 | ||
| EMC ( EN12015 EN12016) | General circuit level | ||
| LED Interpretation |
1. Yellow LED and Red LED in Receiver on when blocked or in malfunction. |
||

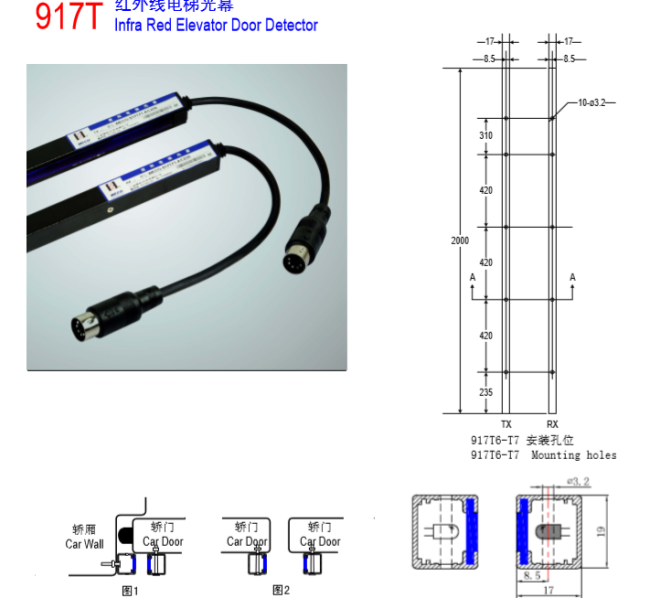

Sectional Dimension

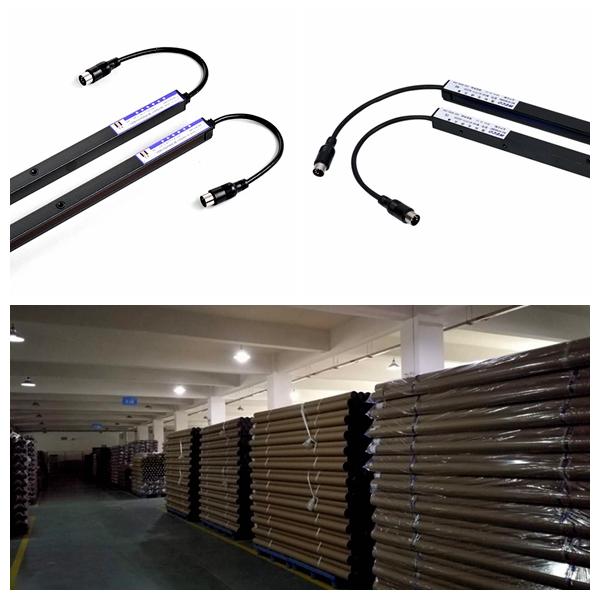

Package
Every piece packed in tube,five tubes in a bundle;
Each tube includes:
Power supply control unit:(1pieces)
Durable flexible cable: (2cables)
Transmitter: (1pieces)
Receiver: (1pieces)
User Manual: (1copy)
Mounting accessories: (1 set)
Packing & Delivery
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
Shipping
1) By Express (3-7 working days), suitable for Small Quantity.
2) By Sea (15-30 days), suitable for regular Mass Production.
3) By Air (4-5 days), from Airport to Airport, suitable for Urgent orders.
