9mm Thickness WECO Elevator Light Curtain Safety Circuit Door Detector

9MM Thickness WECO Elevator Light Curtain Safety Circuit Door DetectorC

EN81-20 New Euro Standard means requirements (for elevator door detector)

1. detecting height range: the lowest≤20mm, the highest≥1600mm.

2. minimum obstructions 50mm, the distance of diode sets must less than 50mm.

3. When distance of door detectors less than 20mm, it allows to be invalid.

Design of door detector (Solution)

1. range of diodes less than 47mm, the number of diodes should be at least 35 or more than 35

2. lowest detecting point:17mm

3. higest detecting point:17+47*34=1615mm. (take 35 diode sets as example)

4. detecting range is 0—4m

5. continuous detectable minimum obstructions is 50mm

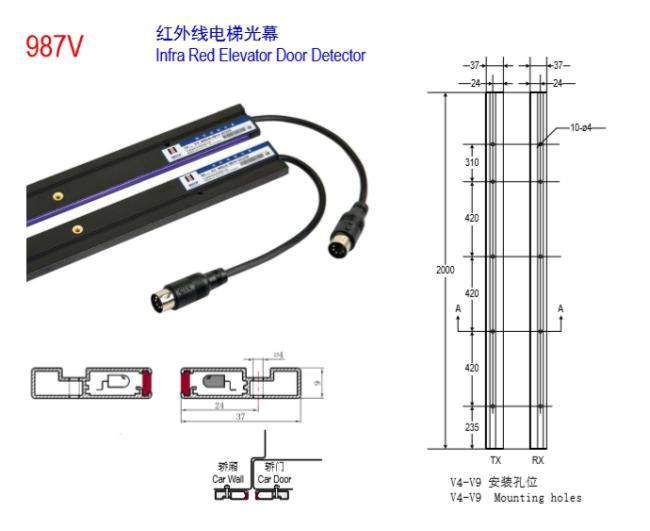

Mounting Holes and Dimension

Package

Every piece packed in tube,five tubes in a bundle;

Each tube includes:

Power supply control unit:(1pieces)
Durable flexible cable: (2cables)
Transmitter: (1pieces)
Receiver: (1pieces)
User Manual: (1copy)
Mounting accessories: (1 set)

More...
--- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in door sensor manufactuering and designing.
--- We have a plenty of stock for this model safety photocell both in English and Chinese version.
--- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO..
