Ningbo WECO Optoelectronics CO., LTD. are specilizing in elevator door sensor production and designing, which the door sensor has been sold to more than 40 countries and area. We also do OEM and ODM serive.
WECO-917/ 957K elevator door detector has a special feature that the mounting holes is flexible. You can choose mounting holes position and quantity of holes on site depend on your detail need.
Morever, WECO-917/ 957K elevator door sensor is suitable for multi type beams, like 94 beams, 154 beams, 194 beams or more. At the same, WECO-917/ 957K elevator door sensor can be designed into EN81-20 new standard model.
As you may know the company named " VEGA", their favorable to chose this type door sensor. For mode detail specification, please see below chart.
| Technical Features | 917K6 | 917K7 | 957K6 | 957K7 | 957K8 | 957K9 | |
| Number of infra red diodes | 17diodes | 32diodes | 17diodes | 32diodes | 40diodes | 48diodes | |
| Response time | relay output | 45ms | 61ms | 45ms | 61ms | 69ms | 77ms |
| transistor output | 21ms | 37ms | 21ms | 37ms | 45ms | 53ms | |
| Scanning Bema | 94~33 beams | 154~94 beams | 94~33 beams | 154~94 beams | 194~118 beams | 234~142 beams | |
| Detecting Height | 20~1841mm | ||||||
| Detecting range | 0~4m | ||||||
| Operating Temperature | -20℃~+65℃ | ||||||
| Light immunity | 1000000Lux | sunlightproof | |||||
| Redundancy | NO | YES | NO | YES | NO | ||
| Led Interpretation | The yellow LED and red LED in receiver is on when blocked or in malfunction | ||||||
| The yellow LED in receiver is on and red LED in receiver off without blocking. | |||||||

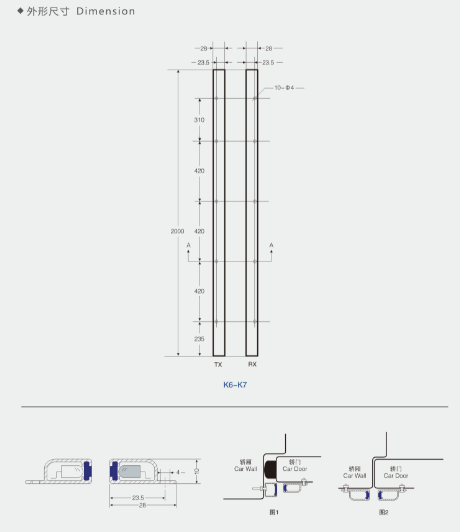

Dimension and Mounting holes
Package
Every piece packed in tube,five tubes in a bundle;
Each tube includes
Power supply control unit (1pieces)
Durable flexible cable (2cables)
Transmitter (1pieces)
Receiver (1pieces)
User Manual (1copy)
Mounting accessories (1 set)
About WECO
--- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in door sensor manufactuering and designing.
--- We have a plenty of stock for this model safety photocell both in English and Chinese version.
--- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO..
--- Our products have been exported to Germany, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Japan, Korea, Thailand, India and many other countries.
