WECO 917B Door Sensor 38mm Elevator Door Detector

Price Negotiable
Price: Negotiable
MOQ: 10SETS
Delivery Time: 5-8 Workdays
Brand: WECO
Product Description

WECO 917B Door Sensor 38mm Elevator Door Detector

As an economic model,  the dimension of WECO-917B model door detector compares to WECO-917A model Lift Door Sensor is a bit wider. I The width is 38mm.

On function it is same as WECO-917A model, all kind of elevator is suitable to be installed. In Iran market, it is more popular because of its 38mm width.



Specification


Technical Features 917B6 917B7 957B6 957B7 957B8 957B9
 Number of infra red diodes 17diodes 32diodes 17diodes 32diodes 40diodes 48diodes
Response time relay output 45ms 61ms 45ms 61ms 69ms 77ms
transistor output 21ms 37ms 21ms 37ms 45ms  53ms
Scanning Bema 94~33 beams 154~94 beams 94~33 beams 154~94 beams 194~118 beams 234~142 beams
Detecting Height 20~1841mm
Detecting range 0~4m
Operating Temperature -20℃~+65℃
Light immunity 1000000Lux sunlightproof
Redundancy NO YES NO YES NO
Led Interpretation The yellow LED and red LED in receiver is on when blocked or in malfunction
The yellow LED in receiver is on and red LED in receiver off without blocking.

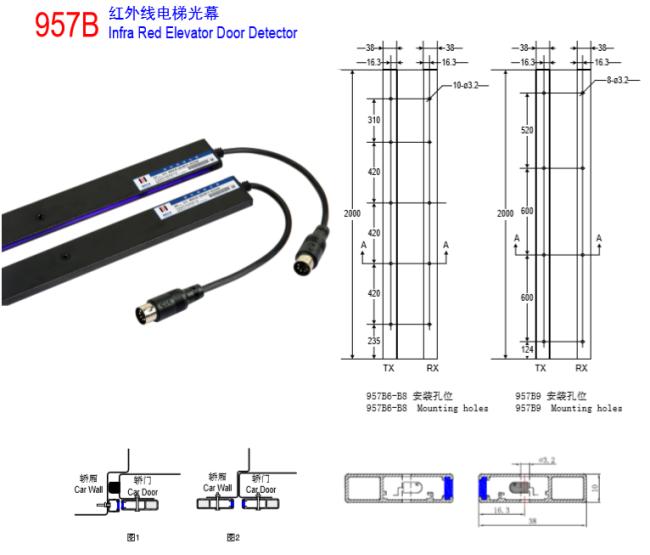

Dimension

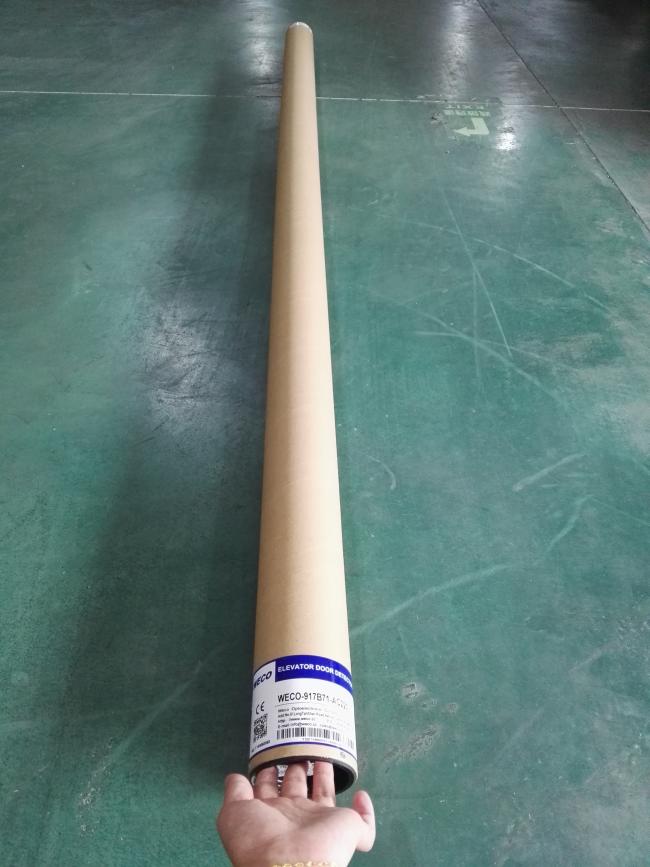

Package
Every piece packed in tube,five tubes in a bundle;
Each tube includes
Power supply control unit (1pieces)
Durable flexible cable (2cables)
Transmitter (1pieces)
Receiver (1pieces)
User Manual (1copy)
Mounting accessories (1 set)





Notice
--- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in door sensor manufactuering and designing.
--- We have a plenty of stock for this model safety photocell both in English and Chinese version.
--- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO.
--- If you want to develop your own model, please connect us also, we will do OEM as per your sepcial requirement.
