AC220V WECO Elevator Door Photocell Central Opening Aluminum Body Material
AC220V WECO Elevator Door Photocell Central Opening Aluminum Body Material
As an economic model, the dimension of WECO-917B model door photocell compares to WECO-917A model Lift Door Sensor is a bit wider. I The width is 38mm.
On function WECO-917B door photocell compares is same as WECO-917A door photocell, all kind of elevator is suitable to be installed. In Iran market, it is more popular.
Specifications
| Technical Features | 917B6 | 917B7 | 957B6 | 957B7 | 957B8 | 957B9 | |
| Number of infra red diodes | 17diodes | 32diodes | 17diodes | 32diodes | 40diodes | 48diodes | |
| Response time | relay output | 45ms | 61ms | 45ms | 61ms | 69ms | 77ms |
| transistor output | 21ms | 37ms | 21ms | 37ms | 45ms | 53ms | |
| Scanning Bema | 94~33 beams | 154~94beams | 94~33beams | 154~94 beams | 194~118beams | 234~142beams | |
| Detecting Height | 20~1841mm | ||||||
| Detecting range | 0~4m | ||||||
| Operating Temperature | -20℃~+65℃ | ||||||
| Light immunity | 1000000Lux | sunlightproof | |||||
| Redundancy | NO | YES | NO | YES | NO | ||
| Led Interpretation | The yellow LED and red LED in receiver is on when blocked or in malfunction | ||||||
| The yellow LED in receiver is on and red LED in receiver off without blocking. | |||||||

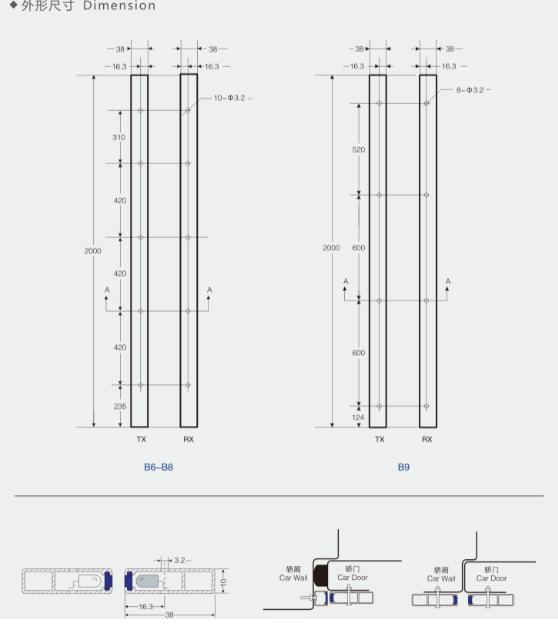

Dimension
Package
Every piece packed in tube,five tubes in a bundle;
Each tube includes
Power supply control unit (1pieces)
Durable flexible cable (2cables)
Transmitter (1pieces)
Receiver (1pieces)
User Manual (1copy)
Mounting accessories (1 set)
Notice
--- Ningbo WECO Optoelectronics CO., LTD. has more than 15 years experience in door sensor manufactuering and designing.
--- We have a plenty of stock for this model safety photocell both in English and Chinese version.
--- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO.
--- If you want to develop your own model, please connect us also, we will do OEM as per your sepcial requirement.
