6.6mm Slim Elevator Door Sensor Easy Installation AC220V Relay Output
6.6mm Slim Elevator Door Sensor Easy Installation AC220V Relay Output
Ningbo WECO Optoelectronics CO., LTD. developed elevator full height photocell since 1998. WECO-917SIX door sensor is a new developed model with only 6.6mm thickness. And WECO be the unique company who has 6.6mm thickness model door sensor. So if your lift is with narrow gap between cabin and door, WECO-917/ 957SIX elevator door sensor will be your best choice.
In the meanwhile, this type also suitable to work with our parted 3D sensor to achieve 3D protection.
Application
All type elevator
Main Market
global
Technical Features
| Technical Parameter | 917SIX | 957SIX |
| Number of Infra Red Diodes | 32 Diodes | |
| Response Time | 61ms relay output | |
| 37ms transistor output | ||
| Scanning Beams | 154-94 Beams | |
| Detecting Height | 20-1841mm | |
| Redundary Function | YES | |
| Operation Temperature | -20℃-+65℃ | |
| Detecting Range | 0-4m | |
| Light Immunity | 100000Lux | Sunlightproof |
| Protection Level | IP54 | |
| EMC | ||
| EN12015 | General Circuit Level | |
| EN12016 | ||
| Voice Reminder | after continuous detection for 15s, buzzer ON. | |
| LED Interpretation | Yellow Led power indicator and red LED status indicator in receiver is on when blocked or in malfunction. | |
| Yello LED power indicator in receiver is on and red LED status indicator in receiver is off without blocked. | ||

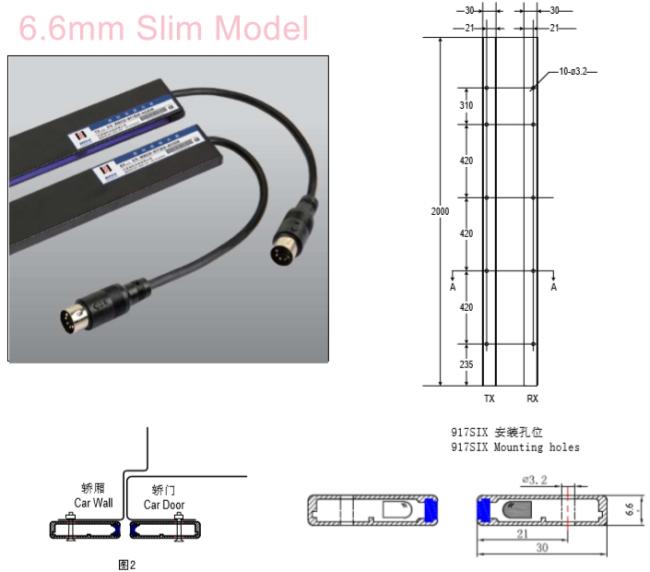

Size:
Packaging & Delivery
1. Prompt deliver at the very day.
2. Well-trained and disciplined packing team.
3. After-sale service:. Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
4. Sophisticated and professional logistic agent.
WHAT WECO HAVE
--- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in door sensor manufactuering and designing.
--- Have full automatic production lines to ensure good quality and fast delivery time.
--- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO..
--- This model is only sold to overseas market to gurantee original WECO manufacturing.
