Introduction
Ningbo WECO Optoelectronics CO., LTD. developed elevator full height photocell since 1998. Also this K profile full height door sensor is widely used and purchased because of slim thickness and special structure. The clients always install this WECO-917K model door sensor on passenger lift and cargo lift.
Morever, WECO-917K model elevator door photocell can connect with our Parted 3D model door photocell to achieve 3D protection function.
Specification
| Technical Parameter | 917K6 | 917K7 |
| Number of Infra Red Diodes | 17 Diodes | 32 Diodes |
| Response Time | 45ms relay output | 61ms relay output |
| 21ms transistor output | 37ms transistor output | |
| Scanning Beams | 99-33 Beams | 154-94 Beams |
| Detecting Height | 20-1841mm | |
| Redundary Function | NO | YES |
| Operation Temperature | -20℃-+65℃ | |
| Detecting Range | 0-4m | |
| Light Immunity | 100000Lux | |
| Protection Level | IP54 | |
| EMC | ||
| EN12015 | General Circuit Level | |
| EN12016 | ||
| Voice Reminder | after continuous detection for 15s, buzzer ON. | |
| LED Interpretation | Yellow Led power indicator and red LED status indicator in receiver is on when blocked or in malfunction. | |
| Yello LED power indicator in receiver is on and red LED status indicator in receiver is off without blocked. | ||

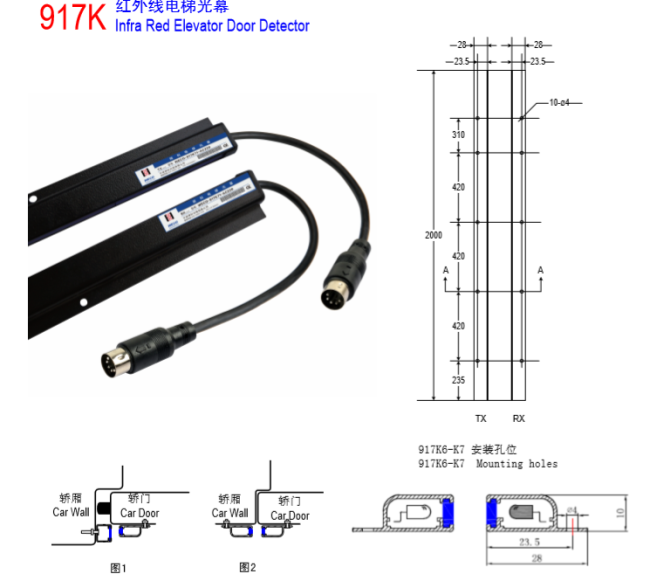

Mounting Holes

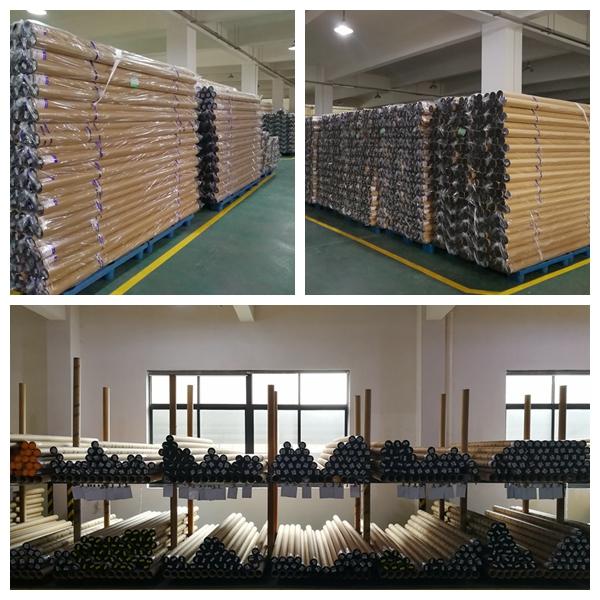

Package
Every piece packed in tube,five tubes in a bundle;
Each tube includes:
Power supply control unit:(1pieces)
Durable flexible cable: (2cables)
Transmitter: (1pieces)
Receiver: (1pieces)
User Manual: (1copy)
Mounting accessories: (1 set)
Why choose this model?
* Various outputs to match with different door operator’s demand.
* Door detector height can be customized.
* Replacement solution can be proved.
What's more?
--- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in door sensor manufactuering and designing.
--- We have two automatic production lines to ensure good quality and fast delivery time.
--- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO.
--- Flexible and Untraceable payment terms.
--- Good after-sale service
