Passenger / Cargo Elevator Infrared Light Curtain Side Opening 5m Cable Sensor
Molik 917A Photocell, WECO Infrared Light Curtain, Side Opening, 5m Cable Sensor
WECO-917A model Lift Door Sensor is the earliest model that Ningbo WECO Optoelectronics CO., LTD. developed since 1998. Also this model full height door sensor is widely used and purchased because of the price advantage and slim thickness. The clients always install this WECO-917A model door sensor on passenger lift and cargo lift.
Specification
| Technical Features | 917A6 | 917A7 | 957A6 | 957A7 | 957A8 | 957A9 | |
| Number of infra red diodes | 17 diodes | 32 diodes | 17 diodes | 32 diodes | 40 diodes | 48 diodes | |
| Response time | relay output | 45ms | 61ms | 45ms | 61ms | 69ms | 77ms |
| transistor output | 21ms | 37ms | 21ms | 37ms | 45ms | 53ms | |
| Scanning Bema | 94~33 beams | 154~94 beams | 94~33 beams | 154~94 beams | 194~118 beams | 234~142 beams | |
| Detecting Height | 20~1841mm | ||||||
| Detecting range | 0~4m | ||||||
| Operating Temperature | -20℃~+65℃ | ||||||
| Light immunity | 1000000Lux | sunlightproof | |||||
| Redundancy | NO | YES | NO | YES | NO | ||
| Led Interpretation | The yellow LED and red LED in receiver is on when blocked or in malfunction | ||||||
| The yellow LED in receiver is on and red LED in receiver off without blocking. | |||||||

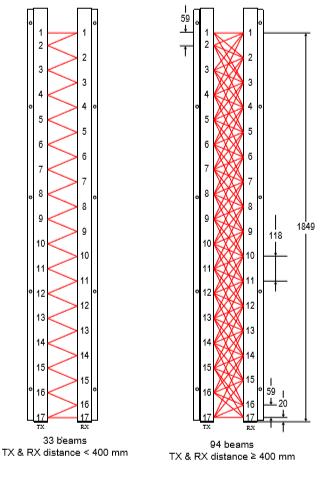

Scanning Beams
Package
Every piece packed in tube,five tubes in a bundle;
Each tube includes
Power supply control unit (1pieces)
Durable flexible cable (2cables)
Transmitter (1pieces)
Receiver (1pieces)
User Manual (1copy)
Mounting accessories (1 set)
More about WECO
--- Ningbo WECO Optoelectronics CO., LTD. has more than 20 years experience in door sensor manufactuering and designing.
--- We have a plenty of stock for this model safety photocell both in English and Chinese version.
--- Each set products all has been scanned into our system and we can get to know when and how the product was produced only through the product series NO..
--- Our products have been exported to Germany, Poland, Finland, Spain, UK, France, Russia, USA, Brazil, Mexico, Australia, Korea, Thailand, India and many other countries.
