550mm Reach 4kg Payload Fanuc Robot Arm CR - 7 IA For Industrial IP65 Protection

Price Negotiable
Price: Negotiation
MOQ: 1 Set/Sets
Delivery Time: Negotiable
Brand: FANUC
Product Description
Product Description
Collaborative robot 6 axis 550mm reach 4kg payload robotic arm CR-7 iA robot arm for industrial use

This product is small, flexible and can work around you. Responsible for lightweight (up to 7 kg) but monotonous repetitive human tasks, including different types of material handling, otherwise you will spend a lot of time. According to your needs, this product can be programmed to execute the entire production process, which requires a stable and reliable quality level. These tasks can be assembled from small parts to highly repetitive tasks, such as picking up and placing items from one place to another. The 911mm extension makes CR-7iA an ideal choice for machine operation and pallet application.


Main Features

1. Without being surrounded, it has a mature sensor technology, which can automatically stop the robot after it collides with a fixed object or human body. This not only saves your space, but also reduces your manufacturing costs.


2. Compatible with existing Fanuc accessories, such as Irvision.



3.Two different sizes - a standard arm and a long arm version.



4.The benefits of each method depend on your needs, because if you have spacing problems, the standard arm is more suitable for you, and the long arm can be further extended in a wider workspace.

SPECIFICATIONS
Product name
Collaborative robot 6 axis 550mm reach 4kg payload robotic arm CR-7 iA robot arm for industrial use
Controlled axes
6
Max. payload at wrist
7kg
Repeatability
±0.03mm
Reach
717mm
Mass (without controller)
53kg
Drive method
Electric servo drive by AC servo motor

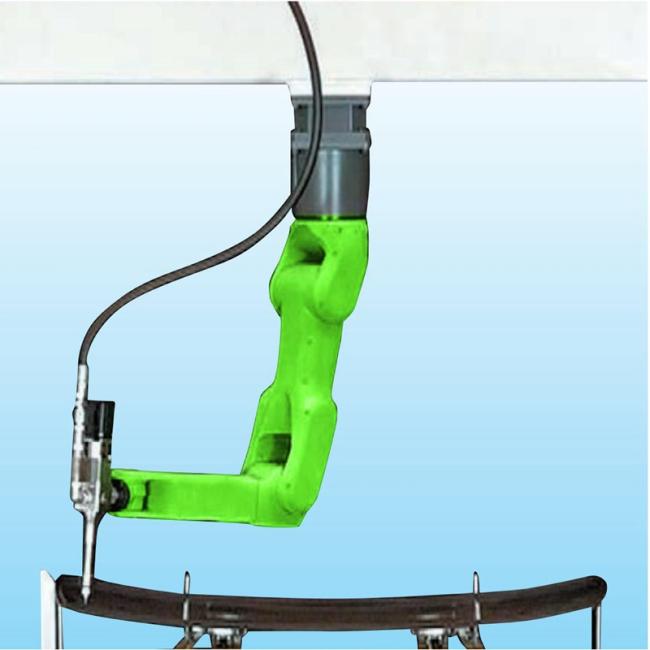

Installation
Floor  Inverted, Angle
Matching controller / Input power capacity
R-30iB/R-30iB Plus (A-, B-cabinet) / 15kVA
                                                                              Robot Motion Speed
J1
250 °/s (4.36 rad/s)
J2
250 °/s (4.36 rad/s)
J3
250 °/s (4.36 rad/s)
J4
250 °/s (4.36 rad/s)
J5
250 °/s (4.36 rad/s)
J6
250 °/s (4.36 rad/s)

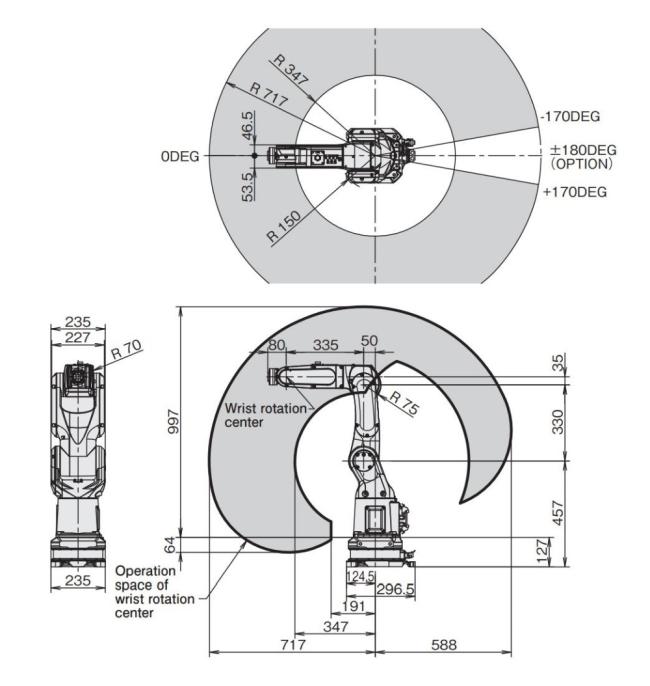

                                                                            Robot Motion Range
J1
±340°
J2
±166°
J3
±373°
J4
±380°
J5
±180°
J6
±720°
Application
Collaborative Robot
