LC/LC OM4 Multimode Fiber Jumper Cable Patch Cord100G Duplex 50/125 LSZH 1/2/3/5m
Price:
Negotiable
MOQ:
10pcs
Delivery Time:
3-5days
Brand:
UNIFIBER-OEM
Product Description

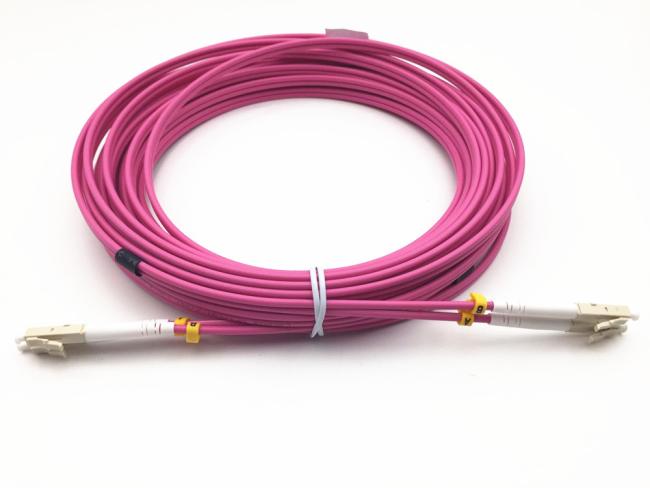

LC/LC OM4 Multimode fiber jumper cable patch cord,100G Duplex 50/125 LSZH 1/2/3/5m for high speed fiber optic networking
Establish high-speed data connections within your local network using the UNIFIBER 10GB/100GB Multimode 50/125 LC/LC Fiber Optic Patch Cable. The multimode patch cable is backwards compatible with existing network equipment and offers 4 times the bandwidth of traditional multimode fibers.Connect high-speed data networks and power outlets to switches, routers and servers, even in high density environments. With 10GB/100GB Ethernet speeds up to 300M at 850nm and backwards compatibility, this laser-optimized multimode fiber is a great solution for your office or campus.
FEATURES
Reliable 10GB/100GB transmission speeds up to 300M
OM4 rating provides better transmission over greater distances than OM3

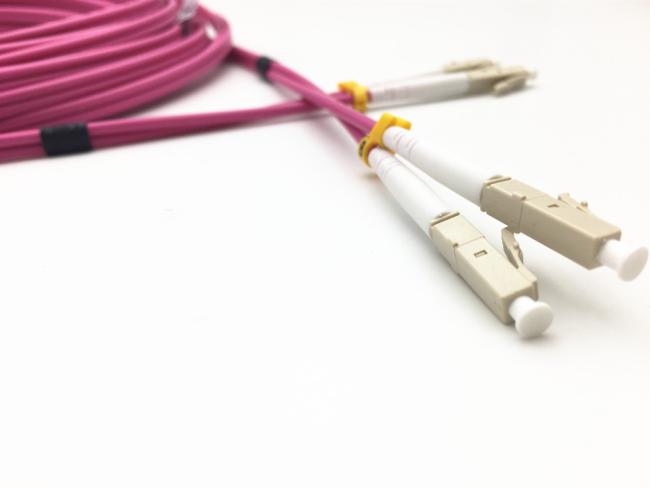

Two LC multimode male connectors on each end
Backwards compatibility provides superior flexibility
OM4 rating provides better transmission over greater distances than OM3
Two LC multimode male connectors on each end
Backwards compatibility provides superior flexibility
Low insertion Loss and High Return Loss
High-quality connectors and Zirconia Ceramic Ferrule
APPLICATIONS
High-Density Data Centers
Interconnects
High-Density Data Centers
Interconnects
Local Area Networks
Cross-connects
Parameters
| Connector | LC to LC | Jacket OD | 2.0/3.0mm |
| Fiber Mode | 9/125μm or 50/125um | Jacket Color | Yellow/Aqua or Violet |
| Polish | PC to PC | Wavelength | 1310/1550nm |
| Cable Type | Duplex | Jacket Material | LSZH, OFNP |
| Insertion loss | ≤0.3dB(max) | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB(min) | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
| Polarity | A(Tx) to B(Rx) | Fiber Grade | 9/125 50/125 OM3 OM4 |
