LSZH Sheath SC APC Waterproof G657A1 Fiber Optical Patch

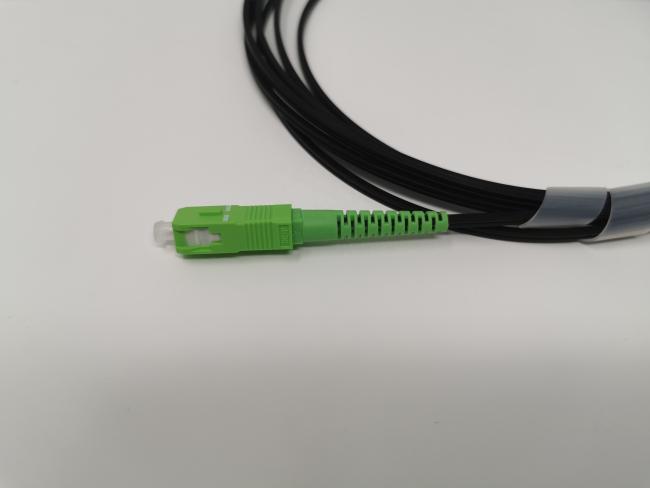

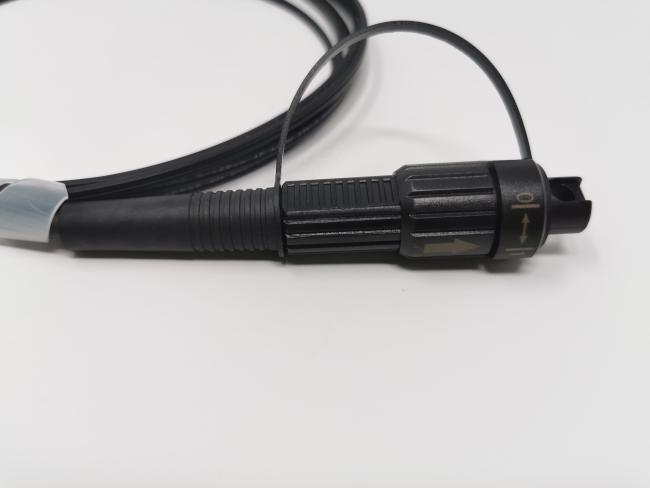

Huawei mini SC APC waterproof fiber optic patch cord for FTTH outdoor drop cable G657A1 LSZH sheath 30/50/100/150 meters
Huawei Compatible Mini SC pre-terminated OSP drop cables provide easy FTTx (Fiber-To-The-X) installation and termination using existing hardware and installation methods for drops to homes and businesses. Its flat profile is compatible with existing wedge (P) clamps.This connector always come with 2.0*30.mm self-supporting drop cable, 3.0mm indoor cable, or 5.0mm round cable. UNIFIBER also provide another mini SC connector with Corning Optitap connector compatiable.
FEATURES
Simple assembly requiring no special tools ·
Push-pull insertion with bayonet-style mechanical latch provides easy installation and removal
Cost effective solution for in house termination
IP67 Water immersion and Dust protection for hash environment ·
Chemical Resistance
Application
Outdoor communication equipment connection
waterproof fiber equipment SC port
Remote wireless base station
FTTx wiring projectFiber optic communications in harsh outdoor environments
Cable Specification:
| Application | Aerial, Direct Buried, Duct |
| Cable Type | Outdoor Cable |
| Fiber Type | G657A1/G657A2/G657B3, customized |
| Termination | One end or both ends |
| Product Type | Drop Assemblies |
| Connector A | Huawei Mini SC APC Connector |
| Connector B | No connector, SC APC or Huawei Mini SC APC Connector |
| Cable Length | Customized |
| Operation Temperature | -40 °C to 70 °C (-40 °F to 158 °F) |
| Insertion Loss | ≤0.2dB |
| Return Loss | ≥55dB |
