1/3/5/7m 50/125um OM3 OFNR 2.0mm Fiber Optical Patch Cord

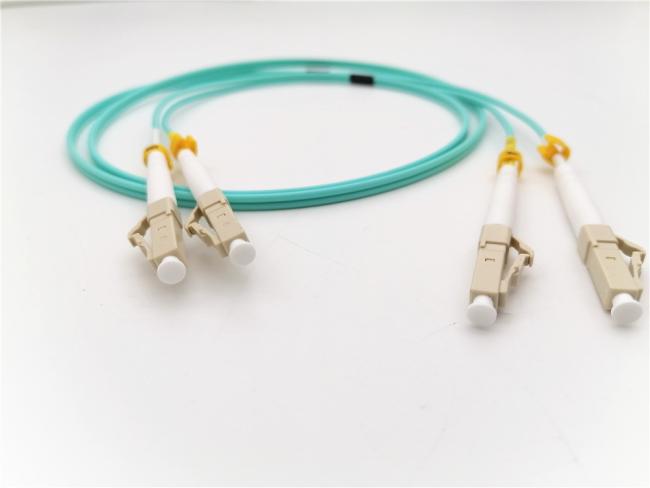

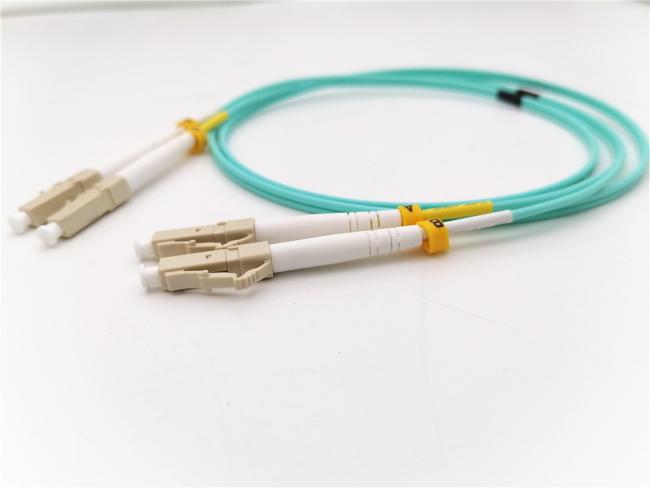

1/3/5/7m LC-LC duplex multimode 50/125um OM3 OFNR 2.0mm Bend Insensitive Fiber Patch Cable for 10G data center cabling
The 50/125μm OM3 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
This 50/125 OM3 multimode fiber optic cable is ideal for connecting 10G SR, 10G LRM, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.
FEATURES
Low insertion loss and back reflection loss
Good in repeatability and exchange
Ferrule end surface pre-domed
Excellent mechanical endurance
Green Production, CE, RoHS Standard
Data centers
Parameters
| Item | SingleMode | MultiMode |
| Insertion loss | ≤0.2dB | ≤0.3dB |
| Return loss | PC≥50dB, APC≥55dB, UPC≥60dB | |
| Insert-pull test | 1000 times | |
| Repeatability | ≤0.1 | |
| Tensile strength | ≥10kg | |
| Operating temperature | -40℃~ +85℃ | |
| Ceramic ferrule spec | 125.5um concentricity deviations:≤1μm | 127um concentricity deviations:≤3μm |
| Suitable fiber | 9/125μm | 50/125μm, 62.5/125μm |
