LSZH 1/2/3/5M G657B3 Bending Insensitive Fiber Patch Cable

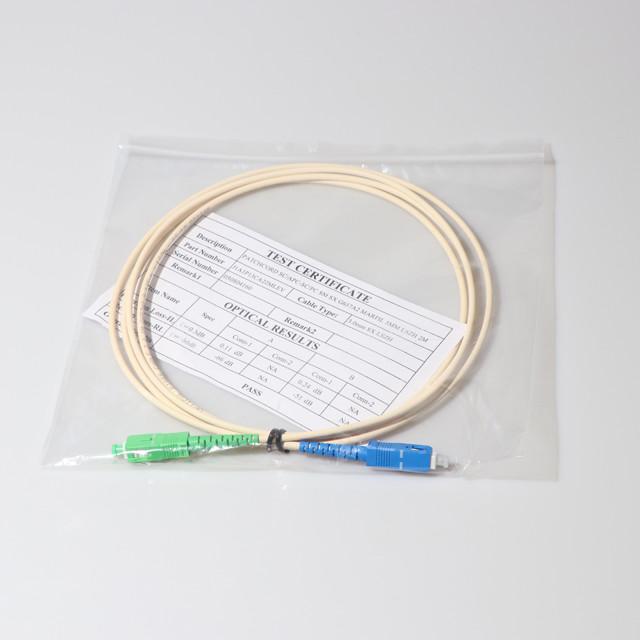

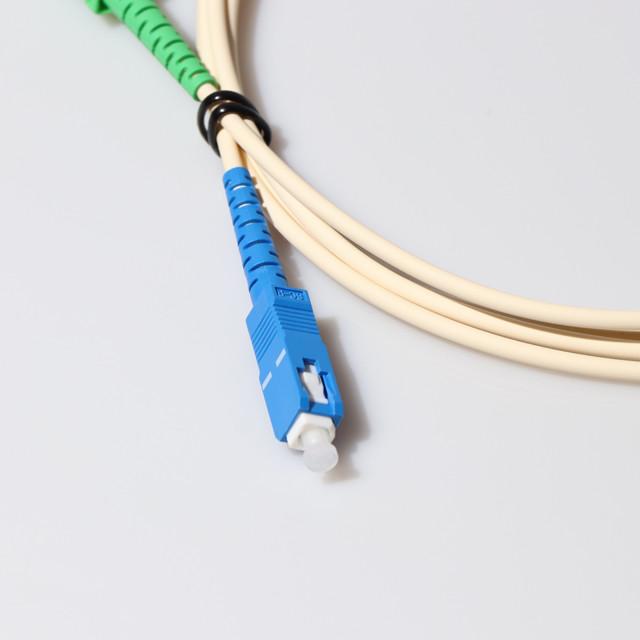

SC/APC to SC/UPC fiber patch cable 9/125um single mode simplex G657B3 Bending Insensitive 3.0mm LSZH ivory white 2M
This is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunicationequipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box.widely used for CATV or FTTH application
Features
Low insertion loss and High reflection loss
Good exchange ability
Good durability
High temperature stability
Application
FTTX+LAN
Optical fiber CATV
Optical communication system
Telecommunication
Parameters
| Connector | SC/APC to SC/UPC | Jacket OD | 3.0mm |
| Fiber Mode | 9/125μm | Jacket Color | White |
| Polish | UPC to APC | Wavelength | 1310/1550nm |
| Fiber Type | Simplex | Jacket Material | LSZH |
| Insertion loss | ≤0.3dB | Interchangeability | ≤0.2dB |
| Return loss | ≥50dB | Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
| Polarity | A(Tx) to B(Rx) | Fiber Grade | G657B3 |
