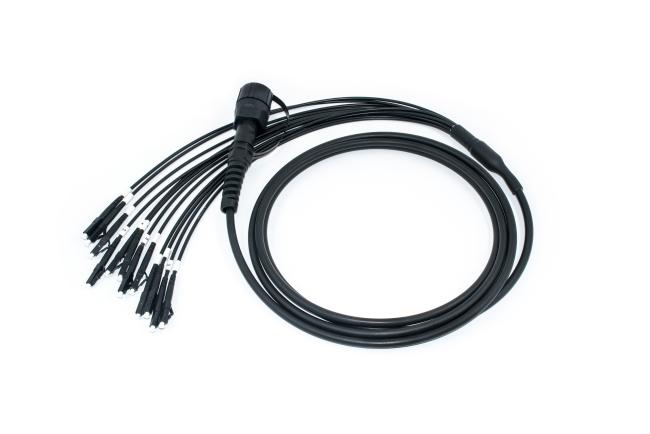

ODVA MPO To LC FTTA RRU CPRI Fiber Optical Patch Cord
ODVA MPO to LC 12cores Outdoor waterproof FTTA RRU CPRI Fiber Optic Patch Cable for 5G base station
ODVA outdoor waterproof fiber optic assemblies are the waterproof connectors to connect the RRH patch panel with IP67 grade to ensure the protection from water immersion or dust, the ODVA assemblies are suitable for industrial, aerospace and defense industries
Application:
Remote interface application such as FTTx or towers
Mobile routers and internet hardware
Harsh environments where chemical, corrosive gases and liquids are common
Used for based station, RRU, RRH, LTE, BBU
Features:
Bayonet mechanical latch with IP67 grade
Suitable for different temperature and weather, harsh environment usage
LC, simplex SC or MPO connector with good repeat ability and interchangeability
PARAMETERS
| Type | SM-UPC | SM-APC | MM-UPC | |||
| Typical | MAX | Typical | MAX | Typical | MAX | |
| Insertion loss | ≤0.1 | ≤0.3dB | ≤0.15 | ≤0.3dB | ≤0.05 | ≤0.3dB |
| Return loss | ≥50dB | ≥60dB | ≥30dB | |||
| Durability | 500 mating cycles | |||||
|
Working temperature |
-40 to + 85℃ | |||||
