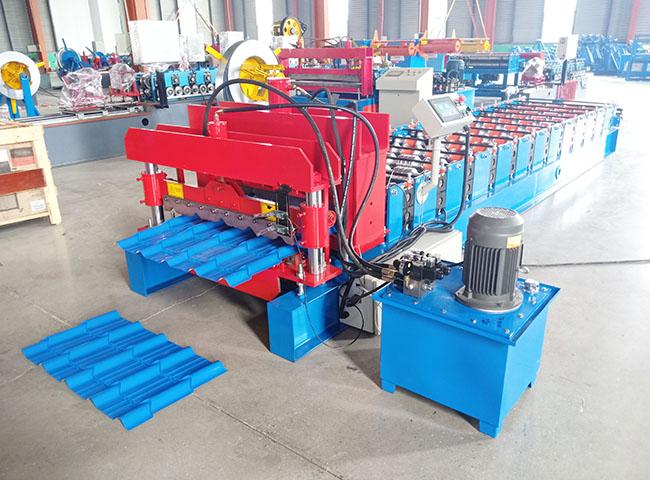

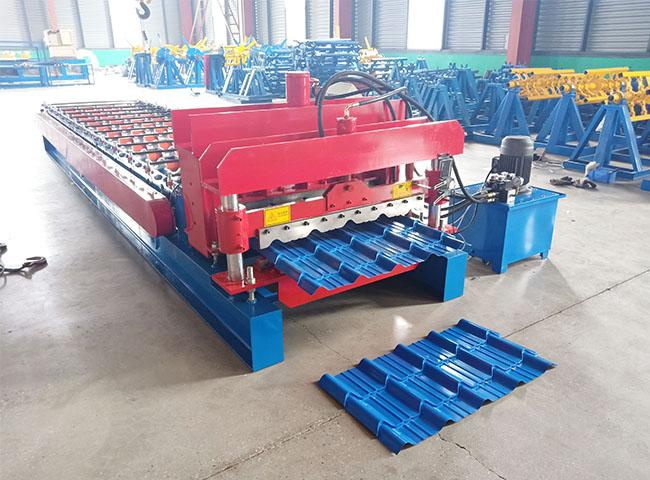

High Speed Metal Tile Roll Forming Machine 13 Stations 5.5Kw Discharge Directly
Convenient And Fast Metal Glazed Tile Roll Forming Machine Discharge Directly
1. Convenient And Fast Metal Glazed Tile Roll Forming Machine Discharge Directly
Glazed Steel Tile Making Machinery for Colored Glazed Steel Roofing Sheet is used to make the color glazed tiles in batch by the Steel Tile Making Machinery. the finished product of Glazed Steel Tile Making Machinery For Colored Glazed Steel Roofing Sheet is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste. This machine working speed is around 4-5 meter per minutes.
2. Convenient And Fast Metal Glazed Tile Roll Forming Machine Discharge Directly Parameters:
| Forming steps | 13 stations |
| Shaft diameter | 70mm |
| Design type | Middle plate welded |
| Machine frame | 350# H steel welded |
| roller material | 45# steel, surface hard chromium plating. |
| shaft material | 45# steel |
| Work speed | 5m/min |
| Transport | By chains |
| Power of main machine | 5.5 kw |
| Type of cutting | Hydraulic |
| Cutting tolerance | ±1mm |
Decoiler--Manual prectting--Material Guiding--Roll forming M/C--Hydraulic System--Post Cutting--Exit Rack
Product Application

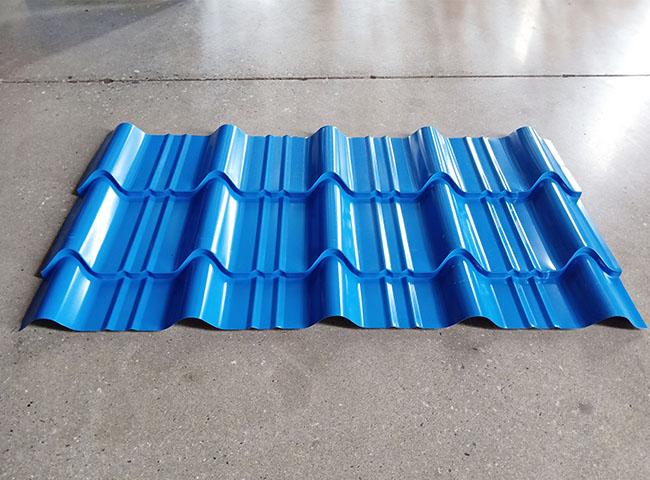

This machine takes GI/PPGI as raw material, through a series steps and can produce the barrel type roofing sheets.
The inverter controls the motor speed, the PLC system controls length and quantity automatically, therefore, the machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.
A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.
B. Without visiting, we will send you user manual and video to teach you to install and operate.
C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
1. How to get the quotation?
1.1.Give me the profile drawing and thickness,this is the important.
1.2 Other specific requirements is welcome,such as the speed,power and voltage you want.
1.3 If you don't have your own profile drawing, we can recommend some model types according to your local market standard.
2. Do you have after sales support?
Yes, we are glad to support advice. Our technicians available across the world.
3. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend a lot of time and money in the research and development of equipment and material selection, so that our machine is more automated, more reliable and accurate, and has a higher service life. Our equipment can last for nearly 20 years, and we offer a two-year warranty.
4. What can we do if the machine broken?
The machine will be tested before shipment with coil, ensure everything is ready 2.We will prepare some spare parts along with the machine, ensure our customer can solve the issue in a shortest time.Both the sale person and technician can give you the service overseas and make training for the workers,the sale person can make translation, so that the installation and training will be more clear and easily.
