Metal Stud Light Steel Keel Roll Forming Machine

Price Negotiable
Price: contact the sales,she will give you the best offer
MOQ: 1 set
Delivery Time: 30-40 work days
Brand: ST
Product Description

metal stud and track steel tracks light steel keel roll forming machine

1. Company information

BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD. was established in 2001.Our company is a comprehensive enterprise intergrating production,sales and service.We are mainly devoted to the development and manufacturing of metal plate cold bending roll forming equipment.

We manufacture all kinds of cold roll forming machines, we main supply trapezoidal roof sheet roll forming machine, glazed tile roller machine, C&Z purlin Rolling Making mahcine and Light steel keel frame former Line.And it include Adjustable Roof Sheet Roll Forming Machine.

2. Technical parameters:

Raw material
material spec sheet, galvanized steel sheet, aluminum sheet
thickness of coil sheet 0.5-3mm
Machine details
roller material High grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft material High grade NO. 45 carbon wrought steel
cutting blade Cr12 mould steel with quenched treatment
diameter of shaft 70mm
forming steps 11 rows
productivity 25-30m/min
hydraulic station power 22 KW
hydraulic pressure 10-12MPa
controlling system famous PLC computer control
material of cutting table Cr 12 mould steel with quenched treatment
appearance size 7500mm*1150mm*1510mm
hydraulic oil 40# hydraulic oil
Electric tension 380V 50 Hz 3 Phase or as your requirements
  • Electronic control system

Description



  • The machine used well-known brand PLC control technology. To realize the automatic machine
  • The system to provide friendly man-machine interface, It can be set batch, workpiece length and number, etc.
  • Encoder count, count and length with function.
  • PLC touch screen adopt domestic famous brands.

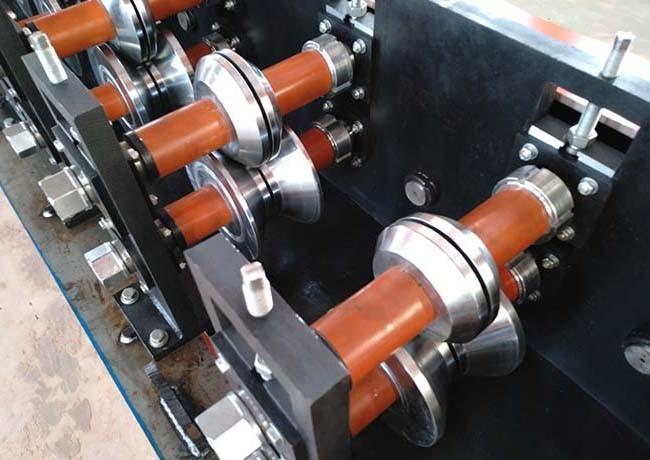

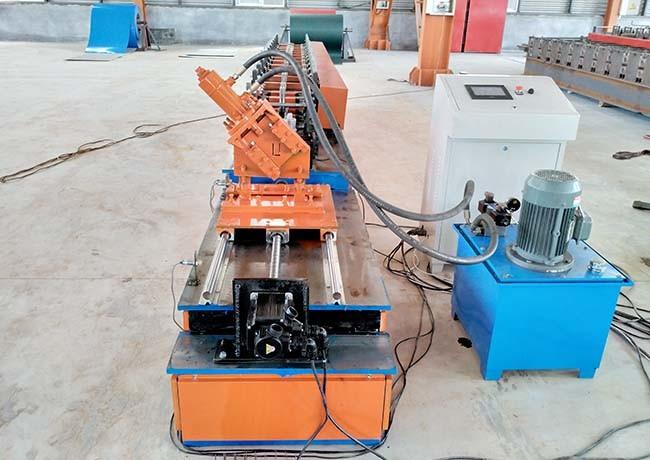

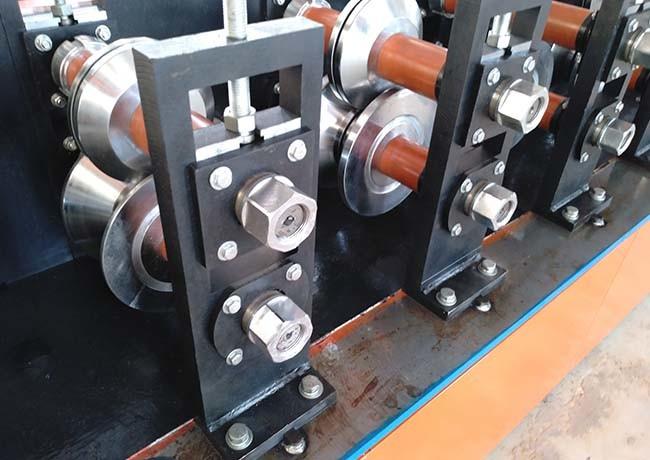

3. Machine picture

4. Installation and training:

A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine,

and also trainyour workers/technician face to face.

B. Without visiting, we will send you user manual and video to teach you to install and operate.

C. If buyer needs our technician to go to your local factory, please arrange board and lodging and

other necessary things.

5. FAQ

6Q: How can I trust you that machines pasted testing running before shipping?

6A: 1) We record the testing video for your reference.

2) You are welcome to visit us and test machine in our factory.

7Q: Do you provide installing and training overseas?

7A: Overseas machine install and worker training services are optional.

8Q: How is your after sales support?

8A: We provide technical support on line as well as overseas services by skillful technicians.

9Q: Guarantee period:

9A: Within one year since the date of finishing commissioning. The guarantee covers all

the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
