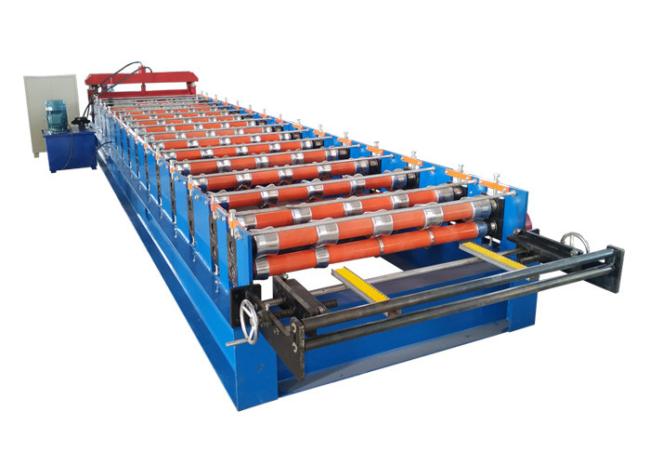

Aluminium Color Steel Roll Forming Machine , 1050 Model Roofing Sheet Making Machine
1050 model aluminium color steel panel roof Sheet Metal Roll Forming Machines
| hydraulic pressure | 10-12MPa |
| hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirement |
| Cut Mode | Hydraulic forming after cutting off |
| Electronic control system | PLC, Touch Screen, Encoding counter |
| Service life | 10 years |
Device Configuration
| Manual decoiler | 1 set |
| Guiding device | 1 set |
| Main roll forming machine | 1 set |

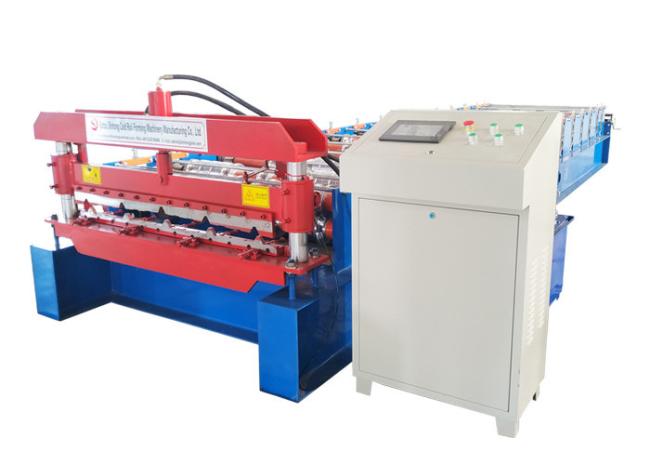

| Hydraulic cutting device | 1 set |
| PLC electric control system | 1 set |
| Hydraulic driving system | 1 set |
| Special tools and parts | 1 set |
Bending precision: the maximum profile deviations (dimensions and shape) shall not exceed the tolerances specified as following data (or equivalent tolerances);
Bending quality: ability to bend the profiles of the specified configuration at the specified maximum steel thickness; cracking of the steel or metal coating is not permitted for all required steel grades;
Maximum production speed: not less than 25 metres per minute (excluding cutting);
Material: 0.2-0.8mm, GI or clor steel, yelid strength: 195-235Mpa;
Manual decoiler:
Dimensions: 1700mm*1000mm*800mm
Width of feeding: 1250mm
Capability: 5 Ton
Inter diameter: 480-570mm
Maximal out diameter: 1500mm
Mode of expand &fight: inner expand &fight by manual
Way of feeding: manual
out table:
Size: 1.0m long*0.8mwide*0.6-1mhigh
One out table with two support roller
Warranty:
Two years, and we will provide technical support for wholelife of the equipment.
Our company used the brand parts about Schneider or Delta Electronics and so on, According to the customer need to choose. Easy to global sourcing. Overall easy loading and unloading machine. Customers can according to the need for replacement parts. And our company provide global service.
After we receive the deposit, our designer will arrange the producing of the machine. After assembling, we will debug the machine and at the same time, we will make video for the clients and teach them how to operate the machine. Before shipping, the machine is tested in our factory. when the client gets the machine, he can according to our video to operate the machine. If some parts of machine broken within 2 year, we will give him the spare parts for free. If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect.
If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
If you can provide better drawings, we can produce machine for you.
