Building Material Corrugated Steel Panel Roll Forming Machine Roller Diameter 80MM
Factory Prices Making Building Material Wall Panel Metal Roofing Corrugated Tile Roll Forming Machine For Sale
Type: Tile Forming Machine
Production Capacity: 4-4.5m/min
Power(W): 3+3kw
Certification: CE/ISO
Condition: New
Tile Type: Colored Steel
Use: Roof
Brand Name: Shitong
Voltage: 380V
Dimension(L*W*H): 7.2*1.4*1.2m
color: any you like
Chain Size: 20mm
Feeding Thickness of plate: 0.3-0.8mm
Roller Diameter: 80mm
Cutter material: Cr12 , quenched
Warranty: 12 months
Main parameters:
| No. | main parameter of CORRUGATED roll forming machine | |
| 1 | Suitable to process | Color steel plate, galvanized sheet, aluminum coils and etc. |
| 2 | Width of the feeding material | 914mm |
| 3 | Roller station | 18 rows |
| 4 | Thickness of feeding material | 0.3-0.6mm |
| 5 | Power | 4+3kw |
| 7 | Productivity | 8-12m/min |
| 8 | Diameter of the roller | Φ70mm |
| 9 | Weight | About 4.5 T |
| 10 | Size | 8500*1300*1400mm |
| 11 | Voltage | 380V 50Hz 3phases |
| 12 | Rolling material | Carbon Steel 45# |
| 13 | Material of the cutting plate | Cr12 |
| 14 | Wall thickness of main forming machine | 16mm steel plate |
| 15 | Main forming machine body | 300 mm H steel |
| 16 | Control system | PLC control |
|
Can be customized according to customer requirements or drawings |
||

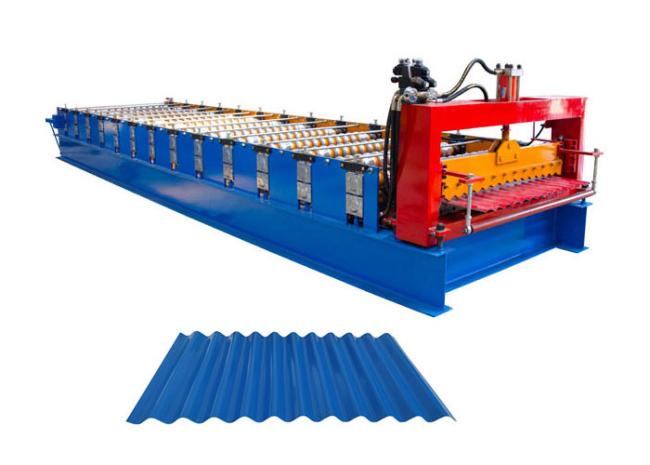

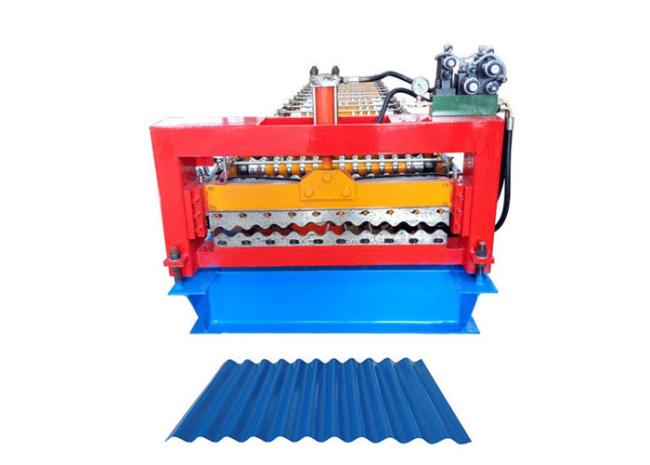

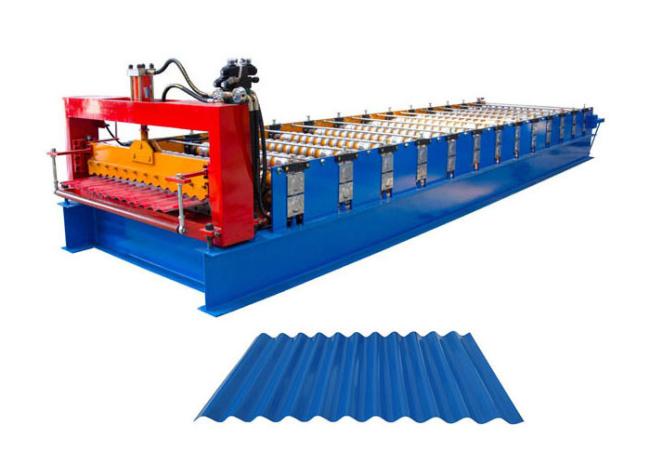

machine pictures:
