Color Steel Glazed Tile Roll Forming Machine , Aluminium Roll Forming Machine Weight 3.2T
Price:
8500$
MOQ:
1 SET
Delivery Time:
30 DAYS
Brand:
shitong
Product Description
color steel galvanized metal aluminum glazed trapezoidal roofing sheet roof tile wall panel roll forming machine
Equipment configuration
| Material of machine | PPGI/GI/Aluminium steel sheet |
| Material thickness | 0.25-0.8mm |
| Effective Width | 1000mm |
| Feeding Width | 1200mm |
| Main Motor Power | 3KW |
| Pump power | 3KW |
| Shaft Diameter | 70mm |
| Number of rollers | 13 Steps |
| Main Frame | 300H/U steel |
| Medium plate thickness | 12mm |
| Control systerm | PLC computer control with inverter |
| Power supply | 380V, 3 Phase, 60Hz |
| 0veral sized | 6700mm*1550mm*1500mm |
| Total weight | about 3.2ton |
| Roller material | high grade NO.45 forged steel, with hard chrome |
| Shaft material | high grade NO.45 carbon wrought steel |
| Cutter material | Cr12 mould steel with quenched treatment |
| Machine color | Blue or yellow |

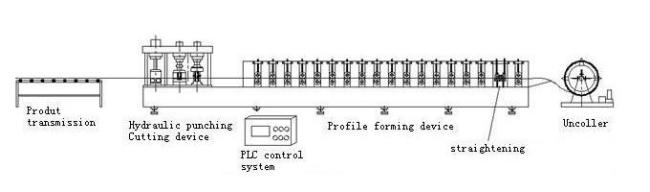

working process:

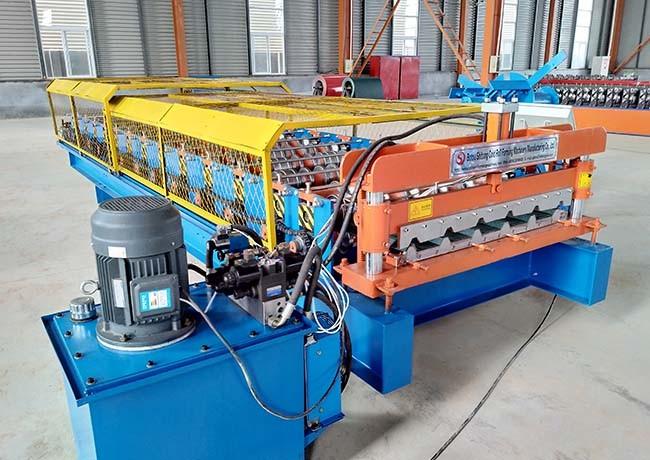

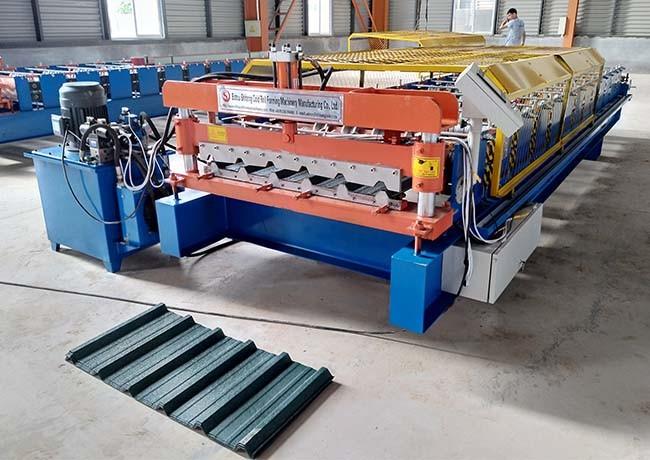

machine pictures:
