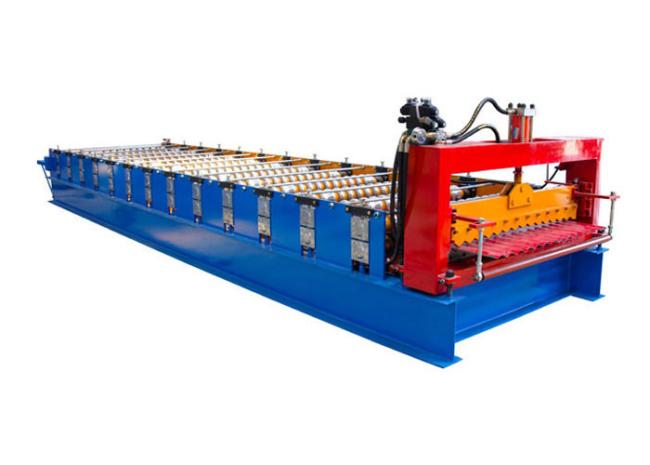

①Roll forming system

• Roll forming system consists of machine frame, drive disk assembly and cold bending rollers, ect.
• The machine Section production and then splicing it
• Cr12 Heat Treatment,roller surfaces polishing, hard plating .
• Support structure in the form of roller shaft.
• All motors use dedicated motor, has excellent mechanical properties.
• Powered by a hydraulic motor system, it has small machine noise, and stable speed rapid prototyping.

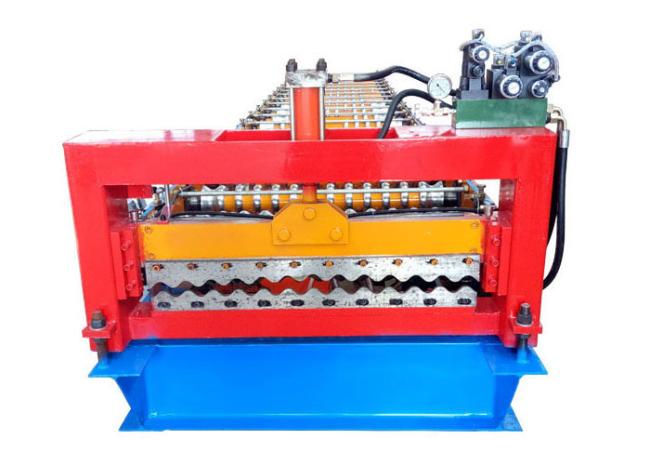

②System for forming after cutting off

• Adopting rolling forming then cut the sheet. No waste here, Cutting knife is made of the Cr12 after quenching.
• Using combined frame type to cut the machine frame. The characteristics is good maintainability and easy to adjust.
• Hydraulic stations offer the cutting power.

③Structural features

• Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
• Cut-off tool: Use of high strength wear thicker type mold, it is advantageous to avoid cutting off at deformation.
