Antique Roof Glazed Tile Roll Forming Machine 45# Steel Material Dimension 7.5*0.8*1.5m

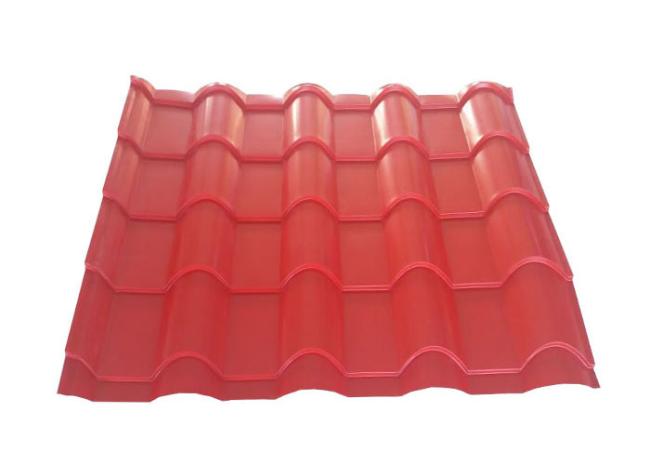

Glazed zinc coating steel roof antique tiles color coated roll forming making machine
1. Know about our machine
The roof tile roll forming machine production line includes manual decoiler, main body of roll forming machine, hydraulic cutting system, PLC control system and discharge table. The users can set order as per their requirement to produce the special pieces and length products. This machine line can work automatically by PLC control system. It is easy to operate and running stably.
*Installation and debugging: We will send professional engineer to make installation and debugging, Buyer pay our engineer each one 100 USD/day, and provide accommodation, food and the round-trip ticket fee.
2. Specifications of the roll forming production line
| Main Forming machine | Forming steps | 15 steps |
| Shaft diameter | 70mm | |
| Machine stand | Connecting Plate | |
| Machine frame | H Steel Welded | |
| roller material | 45# steel | |
| shaft material | 45# steel with quenching and tempering | |
| Work speed | standard: 3-5m/min | |
| Transport | By chain | |
| Power of main machine | 4kw | |
| Voltage | 380V-50HZ-3P(as required) | |
| Machine dimension | 7.5*0.8*1.5m | |
| Machine weight | About 3.5T | |
| Machine color | Yellow and blue(as required) | |
|
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working Feature : Ensure stability , precision and lifetime. |
||
3. The advantages of the machine
1). To design and make the best roll forming machine, we took EUROPEAN quality standard;
2). Choose the best material and components, and adopting our 15 years experience;
3). We achieves that the machine capacity is double of the competitors;
4). The machine working speed can be 30m/min;
5). Very easy to install and operate the roll forming machine.
4. Our company profile
BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD.(hereinafter referred to as SHITONG) is founded in 2005 and specialized in designing, manufacturing, installation, debugging kinds of Metal Panel Roll Forming Machines. SHITONG is a private enterprise with many years’ experience in this field. We have developed many new style Profile Forming Equipment, which enriches our products, makes our machinery more reasonable, artistic and practical. Therefore, we obtain the consistently high praise of new and regular customers.

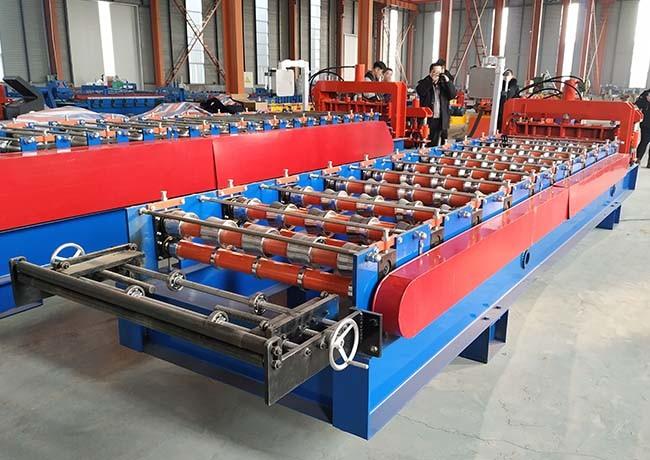

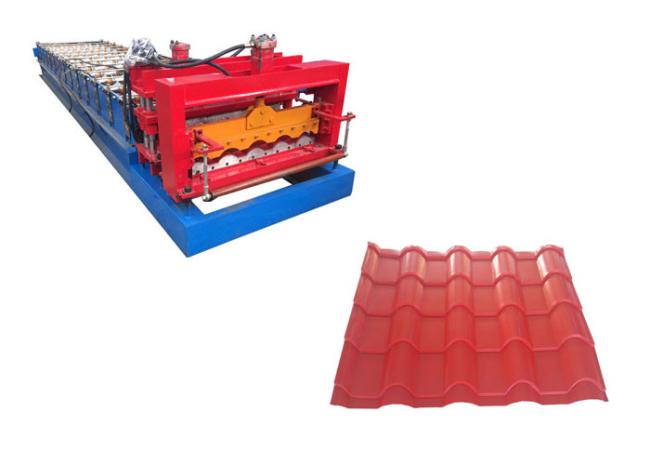

5. Some machine pictures for your reference
6. FAQ
1. If our country's voltage is different from yours, how to solve that?
The usual voltage is 380v,220v,415v. If yours are not one of them, we will design the electric motor to suit your voltage.
2. How to visit our company :
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour),then we can pick up you.
Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5hours),then we can pick up you.
3. How to maintenance?
If using frequently,best coating lubricant on the chain and two ends of the shaft every month, replace the hydraulic oil every 1-2 years.
4. Can you finish the machine during the delivery time?
We will finish the machine in time according to determined lead time.
