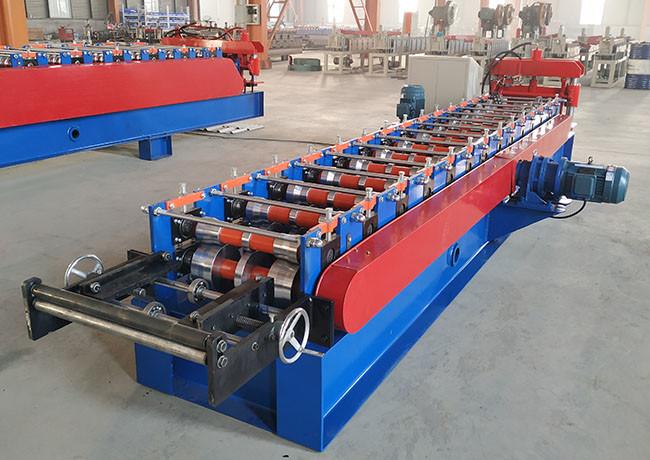

Metal Roof Ridge Cap Roll Forming Machine Sidewall 16mm Connect Bar 25mm

Price Negotiable

Price: Negotiable

MOQ: 1 SET

Delivery Time: 30 DAYS

Brand: SHITONG

Product Description

Metal Roof Ridge Cap Roll Forming Machine Roof Ridge Tiles Building Materials Machinery

Quick Details

Warranty: 18 month

Type: Tile Forming Machine

Production Capacity: 10-15m/min

Certification: CE/ISO9001

Applicable Industries: Building Material Shops, Manufacturing Plant, Home Use, Construction works

Tile Type: Colored Steel

Voltage: 380V 50Hz 3phases or as your request

Dimension(L*W*H): 6500mm*900mm*1200mm

Weight: 3500KG

Name of Roll Forming Machine: Roof Ridge Cap Roll Forming Machine Tiles Building Materials Machinery

Color of Roll Forming Machine: Blue, Grey or as your request

Sidewall: 16mm

Pre-cutting system: Hydraulic cutting with hand cutting

Connect bar: 25mm, galvanized

Transmission model: Sprocket&Chain

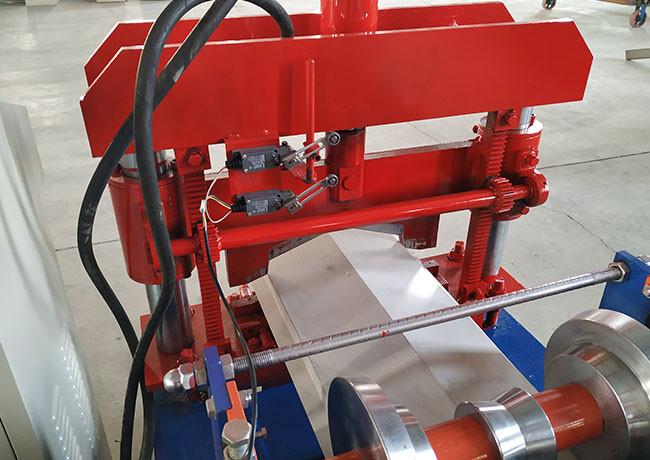

Cutting: Double Oil Cylinder Hydraulic Cutting

Decoiler: Manual decoiler or Hydraulic decoiler

Driving method: Electrical motor

MAIN PAPAMETER

Suitable raw material	PPGI/PPGL/GI/GL Steel Coils
Thickness of coil sheet	0.3-0.8mm
Feeding Coil width	500mm
Effective width	312mm
Under frame	300H-beam
Diameter of Soild shaft	70mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway
Roller	High grade 45# steel, processed by CNC lathe, Quenched and tempered treatment, hard chrome coated 0.05-0.07mm
Thickness of middle plate	Guide pillar memorial archway
Forming stations	16
Drive type	By chain(1.0 inch) link bearing model 6210
Power of main motor	5.5kw with Cycloidal reducer, Lichao, Shanghai
Power of pump station	3kw, Lichao, Shanghai
Forming speed	About 15-20m/min

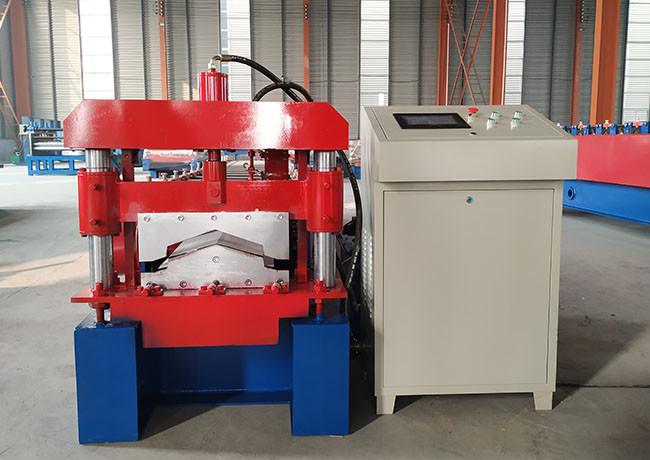

Hydraulic cutting	Controlled by PLC
PLC	DELTA, TAIWAN / Mitsubishi, Japan
Material of cutting blade	Cr12Mov, quenching 58-62℃
Frequency converter	It has the advantage of slowing down before cutting, to ensure the length accuracy(±1mm, far better than industrial standard ±3mm).
Switch	CHNT
Transducer	SAJ
