Roof Truss Light Steel Keel Roll Forming Machine Voltage 380V 50Hz 3 Phases / Customized
automatic U channel roof truss steel light stwwl keel roll forming machine
1. Company information
BOTOU SHITONG COLD ROLL FORMING MACHINERY MANUFACTURING CO.,LTD. was established in 2001.Our company is a comprehensive enterprise intergrating production,sales and service.We are mainly devoted to the development and manufacturing of metal plate cold bending roll forming equipment.
We manufacture all kinds of cold roll forming machines, we main supply trapezoidal roof sheet roll forming machine, glazed tile roller machine, C&Z purlin Rolling Making mahcine and Light steel keel frame former Line.And it include Adjustable Roof Sheet Roll Forming Machine.
2. Technical parameters:
| Raw material | |
| material spec | sheet, galvanized steel sheet, aluminum sheet |
| thickness of coil sheet | 0.5-3mm |
| Machine details | |
| roller material | High grade NO. 45 forged steel with 0.05mm hard chrome plating |
| shaft material | High grade NO. 45 carbon wrought steel |
| cutting blade | Cr12 mould steel with quenched treatment |
| diameter of shaft | 70mm |
| forming steps | 11 rows |
| productivity | 25-30m/min |
| hydraulic station power | 22 KW |
| hydraulic pressure | 10-12MPa |
| controlling system | famous PLC computer control |
| material of cutting table | Cr 12 mould steel with quenched treatment |
| appearance size | 7500mm*1150mm*1510mm |
| hydraulic oil | 40# hydraulic oil |
| Electric tension | 380V 50 Hz 3 Phase or as your requirements |
|
|
|
Description
|
|

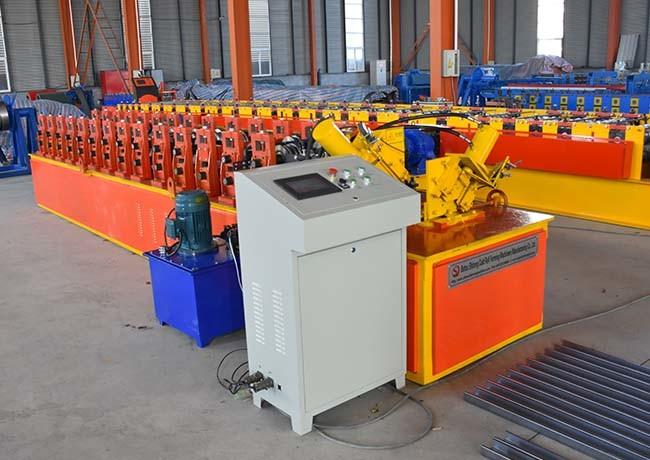

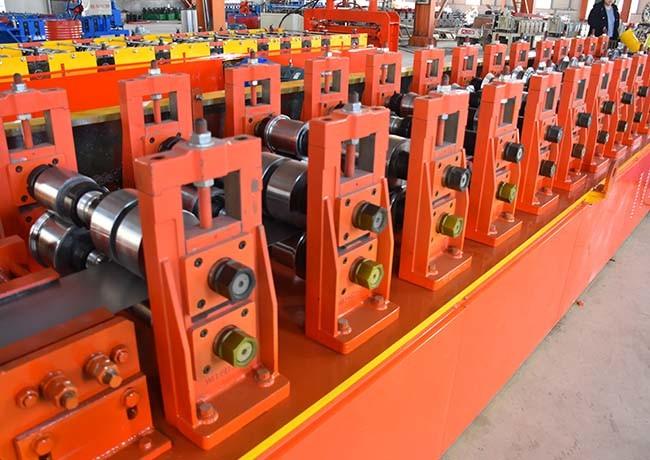

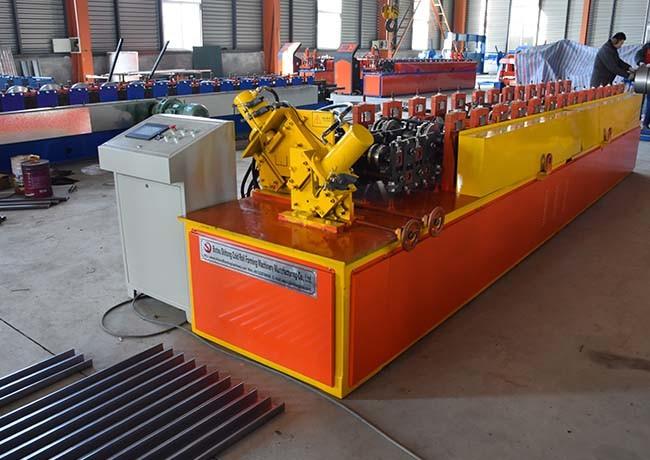

3. Machine picture
A. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.
B. Without visiting, we will send you user manual and video to teach you to install and operate.
C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
5. package and Warranty:
- 1. Nude,with waterproof cloth and stow-wood.Imported computer control system packed with waterproof cloth and card board.
- 2. This producing line is maintained free of charge for 18 months.When the machine is used in China,we will install and debug the machine for free;if it is used at abroad,we will send the professional technician to debug.Buyers should take all the fees for technicians travelling abroad.
- 3. All the parts in the roll forming machine is free to maintain all the life,if in 18 months our company bear the cost for exchanged the broken part like the new parts cost and express cost,if more than 18 month,we also free to maintain the broken parts but for send the new parts,the buyer need bear the express cost.
- 4. When ship the roll forming machine,We will also send one set CD and specification(Chinese and English) to you with the machine,they can teach you how to operater the machines.
6. FAQ
Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.
Q: Guarantee period:
A: Within one year since the date of finishing commissioning. The guarantee covers all
the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
