Power 32 Kw Steel Sandwich Panel Machine , Sandwich Panel Production Line
steel pu foam sandwich roof panels forming forming machine making equipment
Type: Tile Forming Machine
Production Capacity: 8-15M/Min
Power(W): 37.5 Kw
Certification: Ce Bv Iso Sgs
Condition: New
Tile Type: Steel
Use: Roof
Place of Origin: Hebei, China (Mainland)
Brand Name: Shitong
Voltage: 380V Or As Customize
Dimension(L*W*H): 25500*1700*2100Mm
Weight: 18T
raw material: ppgi
feeding width: as customers requirement
color: Customized
motor brand: china famous brand
name: Steel Sandwich Panels Making Equipment
plc: mitsubishi/delixi/siemens
operate style: automatic
profiles: as customers requirement
thickness: 0.3-0.7mm
cutting blade material: cr12 with quenched treatment
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1.5Year
Technical Parameters:
| No. | Item | Specification |
| 1 | Can Formed Material | PPGI,GI,AI |
| 2 | Equipment operation | Automatic |
| 3 | Voltage | 380V 50Hz 3Phase or as your requirement |
| 4 | Thickness of sheet (mm) | 0.4-0.7mm |
| 5 | Material width(mm) | As your requirement |
| 6 | Cover Width of the sheet after formed | as your drawing |
| 7 | The size of the roll forming machine | 19500mmx1950mmx2200mm |
| 8 | Speed | 5-8m/min |
| 9 | Diameter of shaft | 70mm |
| 10 | Weight of the Machine | 22000-23000KGS |
| 11 | Material of rollers | C45 steel quenched and chromed |
| 12 | Motor brand | Siemens or Guomao |
| 13 | PLC | Siemens or Delta or Mitsubushi |
| 14 | Total power (kw) | 32kw |

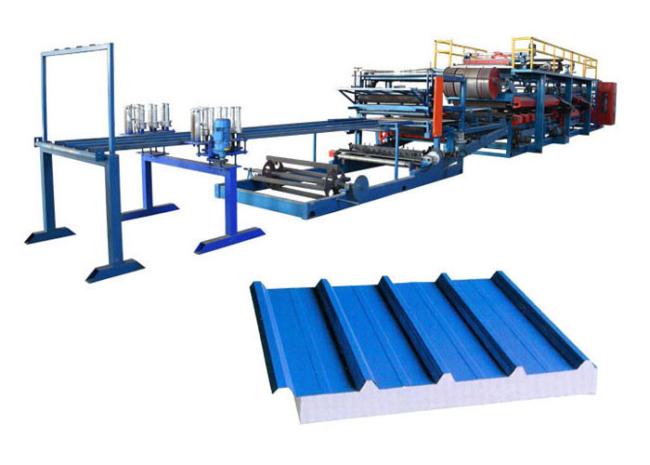

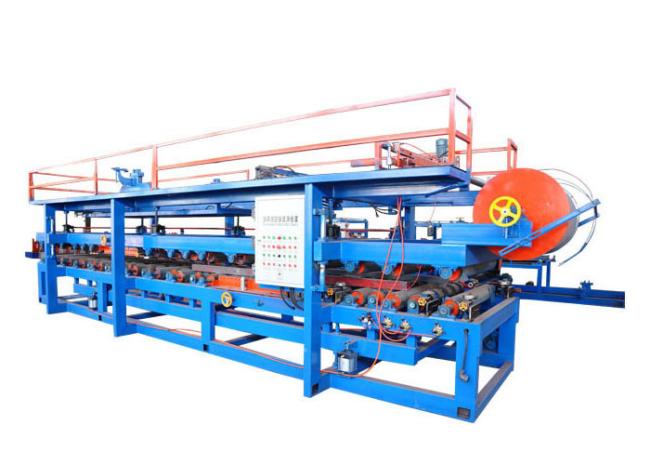

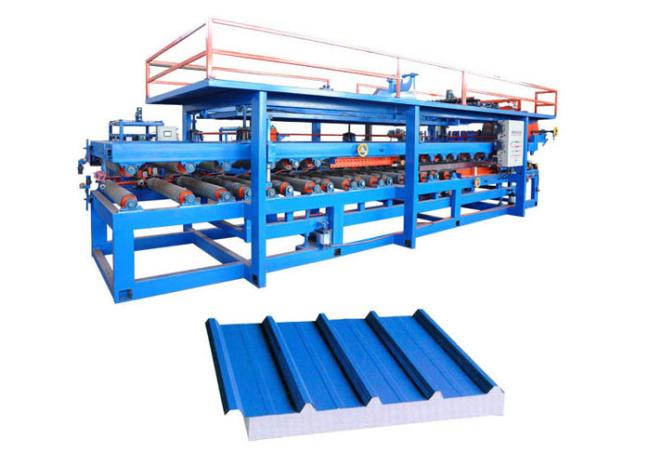

main machine pictures:
