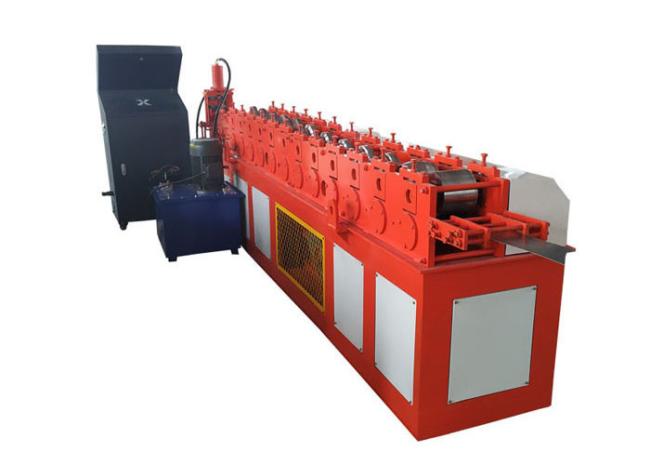

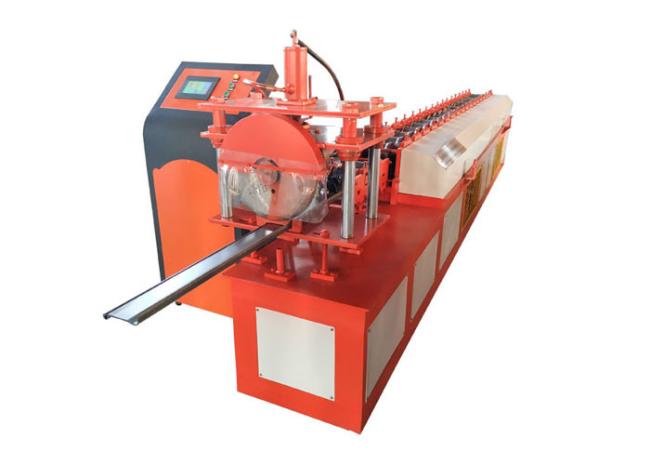

Ending Slat Steel Roller Shutter Door Roll Forming Machine Orange Color Productivity 15-20 M/Min
ce certificate ending slat steel Roller Shutter Door Roll Forming Machine
- Turn/Cut/Console Quality Requirements
| 1. | Productivity | 15-20m/min |
| 2. | Cut Mode | Hydraulic forming after cutting off |
| 3. | Cutter material | Cr12 Heat Treatment |
| 4. |
Electronic control system |
PLC, Touch Screen, Encoding counter |
- Device Configuration
| No | number | |
| (1) | Manual decoiler | 1 set |
| (2) | Guiding device | 1 set |
| (3) | Main roll forming machine | 1 set |
| (4) | Hydraulic cutting device | 1 set |
| (5) | PLC electric control system | 1 set |
| (6) | Hydraulic driving system | 1 set |
| (7) | Special tools and parts | 1 set |
|
Tension type decoiler
|
①Functional Configuration | The worker put coil on the manual decoiler, and tensioning it through spanner. |
| ②technical parameters |
The maximum load capacity 1 Ton The coil inside diameter φ508mm Suitable coil width 300mm |
|
|
|
|
|
|
Q: Are you trading company or manufacturer ?
A: We are factory.
Q:What can u do if the machine broken?
A: Our machine's warranty period is 12 months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but u need pay the express cost yourself.If after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
Q:Does one machine can only produce one style panel profile?
A: Not exactly.For wider and double layer making machine.It can produce more than 6 kinds of panels.
Q:Do u have after sales support?
A: Yes.we are happy to give advice and we also have skilled technicians available across the world.we need your machines running in order to keep your business running.
