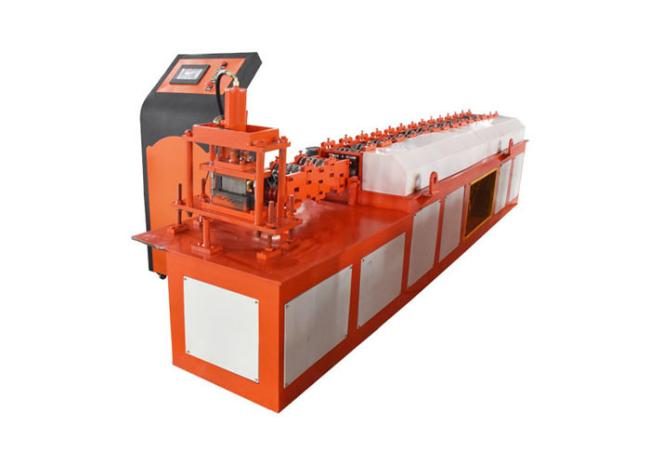

Corrugated Profile Roller Shutter Door Roll Forming Machine Aluminum / Iron Material

Price Negotiable

Price: contact me

MOQ: 1set

Delivery Time: 30 days

Brand: ST

Product Description

aluminum iron corrugated profile design Roller Shutter Door Roll Forming Machine

1.	Suitable Material	Colored Steel plate, Galvanized Board, Aluminum Plate
2.	Coil width	175mm
3.	Effective width	120mm
4.	Thickness	0.6-1.2mm

1.	Productivity	15-20m/min
2.	Cut Mode	Hydraulic forming after cutting off
3.	Cutter material	Cr12 Heat Treatment
4.	Electronic control system	PLC, Touch Screen, Encoding counter

The machine used well-known brand of Delta PLC control technology. To realize the automatic machine
The system to provide friendly man-machine interface, It can be set batch, workpiece length and number, etc.
Encoder count, count and length with function.
PLC touch screen adopt domestic famous brands.

Adopt touch screen control box through the man-machine interface, convenient operation, good appearance, consistent with the whole equipment.
The main components adopt France Schneider, It will stable performance, good reputation, global procurement.
Using a number of control technology, automation degree is high.
Encoder count, length accurately.

Main Components

Decoiler -------------------------------------------------- 1 Unit

Feeding guide ------------------------------------------ 1 Unit

Main roll forming machine --------------------------- 1 Unit

Hydraulic cutting device ------------------------------ 1 Unit

Hydraulic Station --------------------------------------- 1 Unit

PLC computer control -------------------------------- 1 Unit

Output table ---------------------------------------------- 1 Unit

Processing flow diagram of machine

Manual decoiler→Feeding material into machine→Roll forming machine→Measure length→Hydraulic cutting→Finished Products
