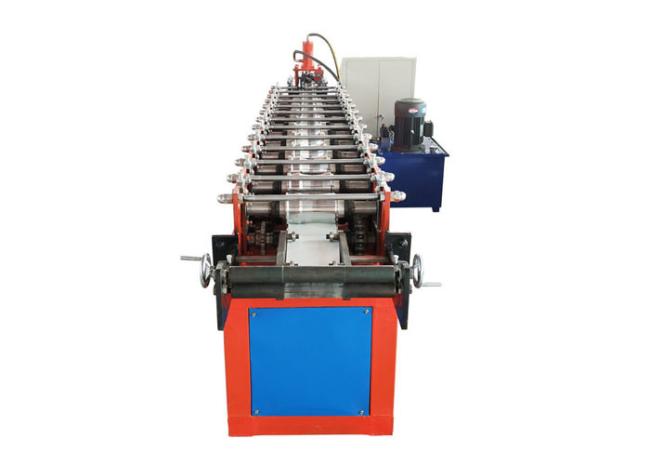

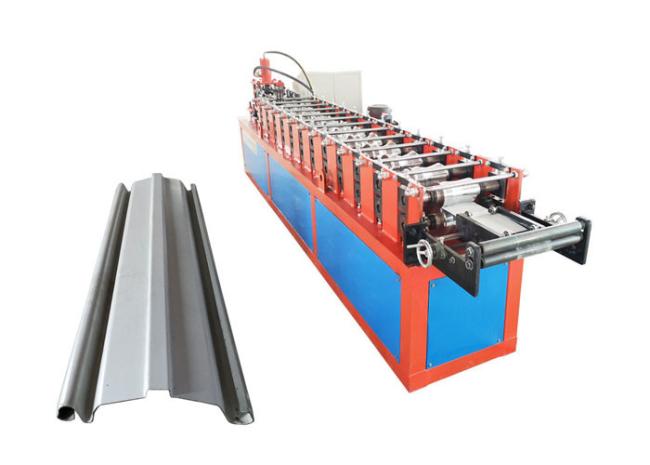

Embossing Type Roller Shutter Door Roll Forming Machine Material Thickness 0.8-1.2mm
ce certificate embossing type Roller Shutter Door Roll Forming Machine
- The Host Quality Requirements:
| 1. | Color | As you like |
| 2. | Appearance size | 5.0*0.8*1.3m |
| 3. | Rows of rollers | 12 rows |
| 4. | Rolling material | 45# steel,roller surfaces polishing, hard plating |
| 5. | Diameter of shaft | ￠50 mm |
| 7. | Total power | 3.7 KW |
- Turn/Cut/Console Quality Requirements
| 1. | Productivity | 15-20m/min |
| 2. | Cut Mode | Hydraulic forming after cutting off |
| 3. | Cutter material | Cr12 Heat Treatment |
| 4. | Electronic control | PLC, Touch Screen, Encoding counter |
Manual decoiler:
Dimensions: 1700mm*1000mm*800mm
Capability: 3Ton
Range of expand(by manual): 420mm—510mm
Mode of expand &fight: inner expand &fight by manual
Way of feeding: manual
Profile steel thickness between 0.8mm and 1.2mm
Main motor power:4kw, AC motor, side motor to save space (Brand: guomao which made in China)
Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
Roll station:10stations +1 station of rectify
Roller material:SAE1045, hardness and chrome plated surface
Shaft diameter: ￠56mm material: SAE1045
Machine roll forming speed: 15m/min
Roll former has leveling bolts in the base for adjust the leveling
Machine base frame adopt H beam welding steel
In the main roll forming machine have 1 button for urgency stop if happen any malfunction.
Transmission: by chain, 1.0inch double line
Post cutting :
Machine adopt hydraulic cutting system, When cutting the machine will stop, after cutting will start the motion automatically.
Hydraulic power: 3KW
Hydraulic working pressure: 10Mpa
Cutting after forming: Cut the sheet after roll forming to required length
Material of blade:Cr12 with heat treatment 58-60°2 sets cutter
Length measuring: Automatic encoder length measuring, brand: Omron
Tolerance of length: 3000mm+/- 1.5mm
out table:
Size: about 2.0m long*0.3mwide*0.9mhigh
One out table with support roller
Supporter roller: ASTM 1045 with chrome
Diameter of rollers: 55mm
Color: Blue
Quantity: 2units
Hydraulic station:
Hydraulic power: 3kW
Working pressure: 10Mpa adjustable
Solenoid valve: 1 group
Hydraulic oil: 46# hydraulic oil
Color: Blue (or base on customer request)
Control carbinet:
2) Automatic stopping of the equipment after completion of the cutting programme.
5) PLC brand: Panasonic
6) Frequency converter brand: Yaskawa, quantity: 1
7) Touch screen: Taiwan Weinview
