High Strength Light Steel Keel Roll Forming Machine Easy Operation For Omega Profile
galvanized drywall used omega profile light gauge steel framing cold roll forming machine equipment
1. Usage And Introduction Of This Production Line
The complete roll forming gauge machine line , includes manual decoiler, main body of roll forming machine, hydraulic cutting system, PLC control system and discharge table. The users can set order as per their requirement to produce the special pieces and length products. This machine line can work automatically by PLC control system. It is easy to operate and running stably.
| uncoiler | 1set |
| coil sheet guiding device | 1set |
| main roll forming system | 1set |
| punching device | 1set |
| cutting device | 1set |
| Hydraulic station | 1set |
| PLC control system | 1set |
| support table | 1set |
2. The roll forming machine parameters
| Item | Description |
| Working efficiency | 20-40 m/min |
| Thickness of Material | 0.4--0.7mm(can be changed according to customers need) |
| Control system | PLC(The brand can be choose) |
| Uncoiler system | 1.5Ton Manual Operation(1250mm width) |
| Forming by rolling | 9 rows (According to the machine design) |
| Roller material | Cr12MOVO |
| Main part power | 3kw |
| Hydraulic motor power | 3kw |
| Hydraulic pressure | 12Mpa |
| Scissor material | Cr12Mov, herd steel HRC 58-62°C |
| length tolerance | ±1.5mm |
| voltage | 380V, 50HZ,3 phase (adjustable by customer needs) |
| Frame form | Memorial arch |
| Driving Method | Chain |
| Color | blue(adjustable) |
| weight | about 2.2T |
1. Low cost, light weight but high strength, short building period, and re-cycle use
2. Save material , no waste.
3. Easy operation, low maintenance cost
4. Infinite sizing(any size within machine range),help to save material
5. Optional Punch hole at any position of purlin web side and flange side
Some relative terms we can provide:
1. Minimum order quantity (MOQ): 1 piece
2. Delivery time: about 45 workdays
3. Port of loading: port of Xiamen
4. Type of payment: by T/T or by L/C
5. Export: Australia, UK, Ireland, Mexico, Brazil ,Israel ,Dubai, Russia ,India, Taiwan, Singapore,
Malaysia ,Thailand, Philippines, Myanmar ,Vietnam, South Africa, Mozambique,
Zambia, Zimbabwe, Nigeria, Egypt, Sudan, etc.
4. FAQ (about our roll forming machine)
4.1:How to maintenance?
A:If using frequently,best coating lubricant on the chain and two ends of the shaft every month, replace the hydraulic oil every 1-2 years.
4.2:What can you do if the machine broken?
A:Our machine's warranty period is 1 year,
if the broken parts can't repair,we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.
if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
4.3:Can you be responsible for transport?
A:Yes,please tell me the destination port or address.we have rich experience in transport.

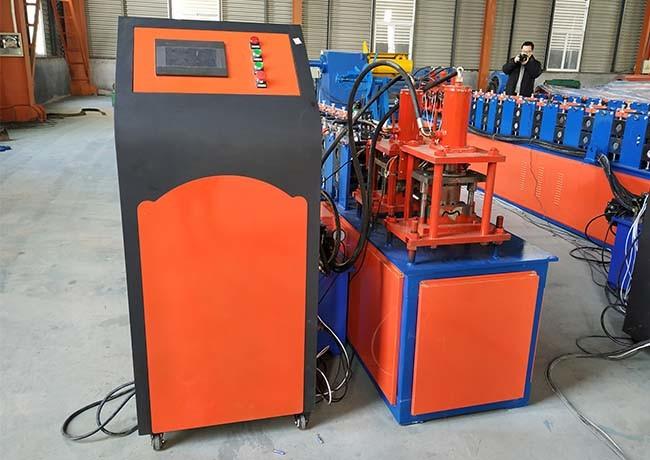

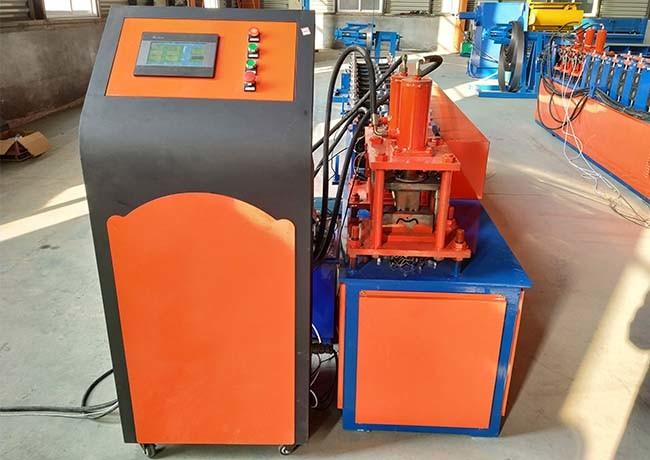

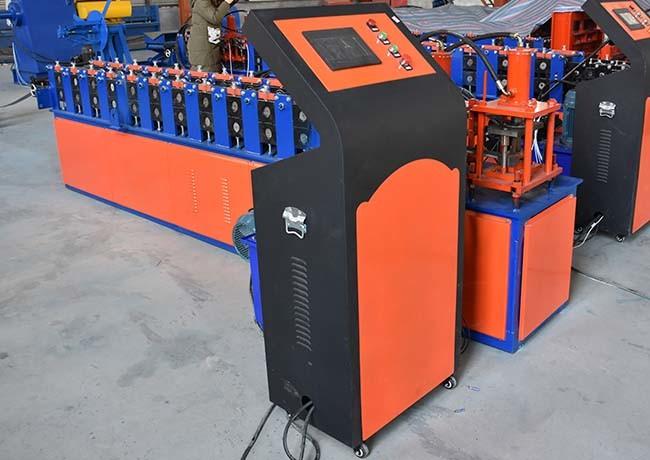

5. Roll forming machine pictures:
