roofing sheet profile crimping curving arch roll forming machine
roofing sheet profile crimping curving arch roll forming machine
Warranty: 2 Years
Type: Tile Forming Machine
Production Capacity: 2m/min
Certification: CE/ISO9001
Applicable Industries: Building Material Shops
Condition: New
Tile Type: Colored Steel
Use: Roof
Place of Origin: Hebei, China (Mainland)
Brand Name: shitong
Voltage: 380V 50Hz 3phases
Dimension(L*W*H): 8500*1300*1100
Weight: 4.2T
After-sales Service Provided: Engineers available to service machinery overseas
coil type: PPGI, Galvanized sheet
coil width: 914 1000 1220 1250mm
coil thickness: 0.3-0.8mm
shaft material: 45#steel-high quality steel, diameter 70 mm
roller material: 45# steel with chrome coating
roller station: 15(depends on final design)
Main frame: 350 H steel
board thickness: 16mm
control system: PLC control system(brand as requirement)
Main parameter:
|
technical parameter of IBR and corrugated roofing sheet profile crimp curving machine
|
|||
|
Coil material
|
type
|
PPGI/Galvanized sheet
|
|
|
width
|
914/1000/1220/1250mm (according to customer requirements and profile drawing)
|
||
|
thickness
|
0.3-0.8mm
|
||
|
Forming device
|
shaft material
|
45#steel-high quality steel, diameter 70 mm
|
|
|
roller material
|
45# steel with chrome coating
|
||
|
roller station
|
15 (depends on final design)
|
||
|
Main frame
|
350 H steel
|
||
|
board thickness
|
16mm
|
||
|
weight
|
around 1.2T(depends on final design)
|
||
|
dimension
|
2500mm*1300mm*1100mm(depends on final design)
|
||
|
Control system
|
PLC control system(brand as requirement)
|
||
|
Total power
|
3+3kw (depends on final design)
|
||
|
Voltage
|
380V,50HZ,3 phascs or as your need
|
||
|
Productivity
|
2m/min(depends on final design)
|
||

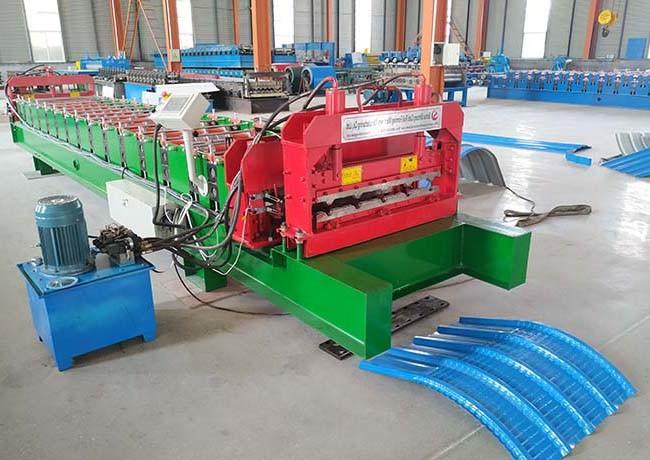

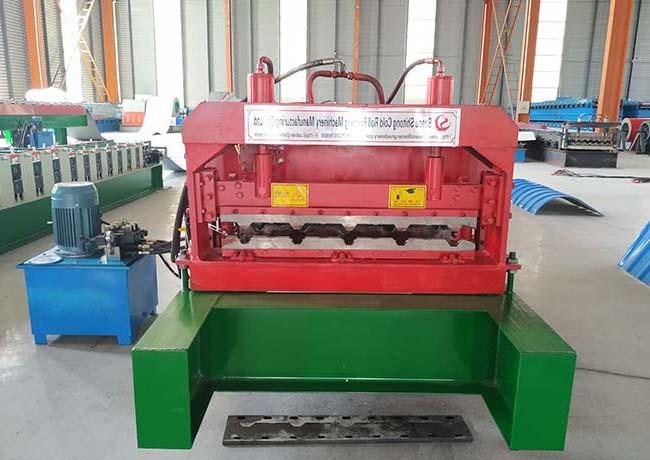

machine pictures:
