Metal Roofing Galvanized Aluminum Corrugated Steel Sheet metal roll forming machine
Metal Roofing Galvanized Aluminum Corrugated Steel Sheet Metal Roll Forming Machine
Brief of the machine
Customized shape profile panel metal roll forming roof sheet making machine,it is our company most popular products in building materials machine. For roof sheet, it include many type according to its different shape, popular type include corrugated tile roll forming machine, trapezoidal tile roll forming machine,glazed tile roll forming machine, ridge cap roll forming machine and other type profile panel roll forming machine.
When you choose roof sheet making machine, you had better learn popular shape in local,also raw material is an important considering data, if do not have good supplier in local, we can assist you purchase it in China together. we are professional factory and in this area for many years, any requires please contact us at any time!
Components of corrugated iron sheet machinery
| No. | Name | Unit | Qty |
| 1 | Manual decoiler | set | 1 |
| 2 | Main forming machine | set | 1 |
| 3 | PLC control system | Set | 1 |
| 4 | Hydraulic pump station | set | 1 |
| 5 | post cut | set | 1 |
| 6 | electric motor | set | 1 |
| 7 | output table | set | 1 |
Corrugated iron sheet machinery production process:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving
Specifications of the machine
| No. | Item | parameter |
| 1 | Machine size | 5500*2100*1200mm |
| 2 | Machine weight | 3500kg |
| 3 | Machine power | 4kw |
| 4 | Hydraulic engine | 4kw |
| 5 | Roll speed | 10-15M/Min |
| 6 | Roll stations | 15 stations |
| 7 | Roller material | 45# steel, CNC lathes, hard Chrome Coated |
| 8 | Feeding material | PPGI |
| 9 | Feeding width | based on the panel |
| 10 | Voltage | 380V 50Hz 3PH/Customized |
| 11 | Material thickness | 0.3-0.6 mm/Customized |
| 12 | Control System | Schneider/Delta/Customized |
Frequently asked questions
Q1, If our country's voltage is different from yours, how to solve that?
A1, The usual voltage is 380v,220v,415v. If yours are not one of them, we will design the electric motor to suit your voltage.
Q2, We bought your roll forming machine line, but we couldn't install and debug it?
A2, Don't worry about that, when finished the machine, we will send you the manual book which shows you how to use the machine; if you still don't know, we can record a video to teach you how to operate the machine.
Q3, About the after service, if the machine has problem out of guarantee?
A3, All the machines are one guaranteed, life maintenance. It means if you order our machine, you will be our customer for lifetime, you can ask us anytime about the machine issues.

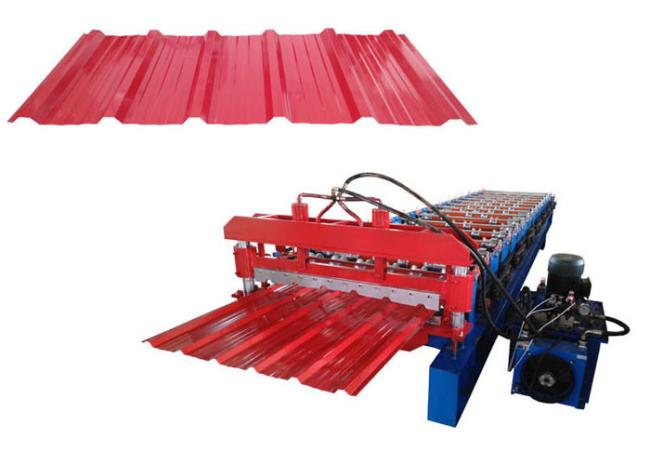

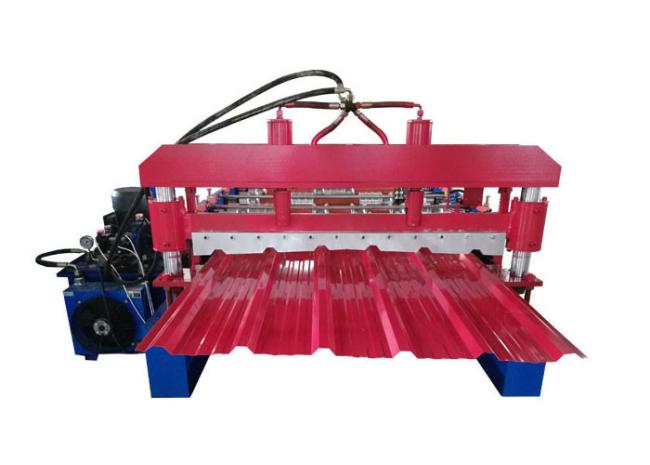

Machine pictures for your reference:
