IBR Trapezoidal Profile Metal Tile Roofing Sheet Roll Forming Making Machine
IBR Trapezoidal Profile Metal Tile Roofing Sheet Roll Forming Making Machine
Place of Origin: Hebei, China (Mainland)
Brand Name: SHITONG
Type: Tile Forming Machine
Model Number: 1000
Power: 4KW
Weight: 3.2Ton
Warranty: 18 Months
Roller Material: 45#
After-sales Service Provided: Engineers available to service machinery overseas
Main parameters:
| No. | Item | |
| 1. | Processing Material | PPGI, GI, galvalum |
| 2. | Processing Thickness(mm) | 0.3 mm |
| 3. | Coil width | 1220mm |
| 4. | Material of Rollers | 45# steel, with hard chrome coated |
| 5. | Diameter of Shaft | 70mm |
| 6. | Production Speed | 0-14m/min |
| 7. | Roller Driven | Decelerating Motor+Chain Transmission |
| 8. | Cutting Model | Hydraulic Profile Cutting |
| 9. | Length Measurement | Encoder |
| 10. | Control Style | PLC |
| 11. | Operation Model | Button + Touch Screen |
| 12. | Total Power | 8kw |
| 13. | Voltage | 380V 50HZ or at buyer's request |
| 14. | Testing Material | Q195 |

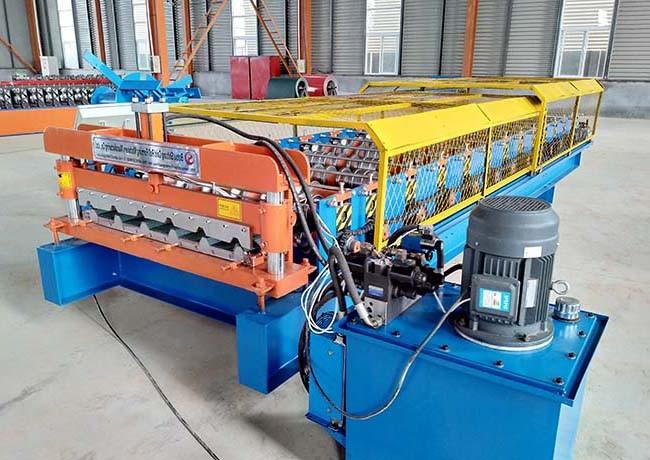

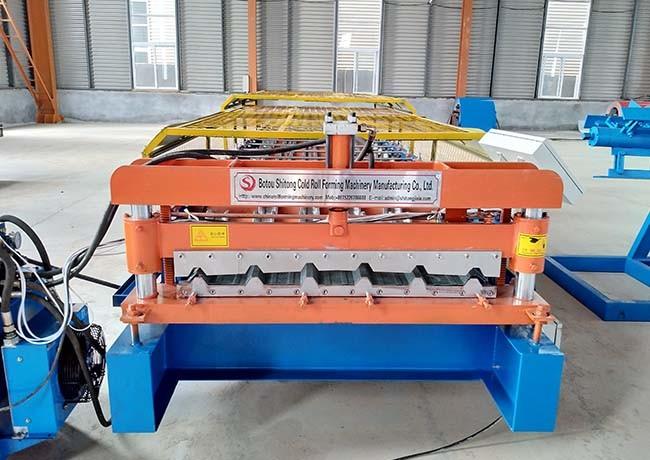

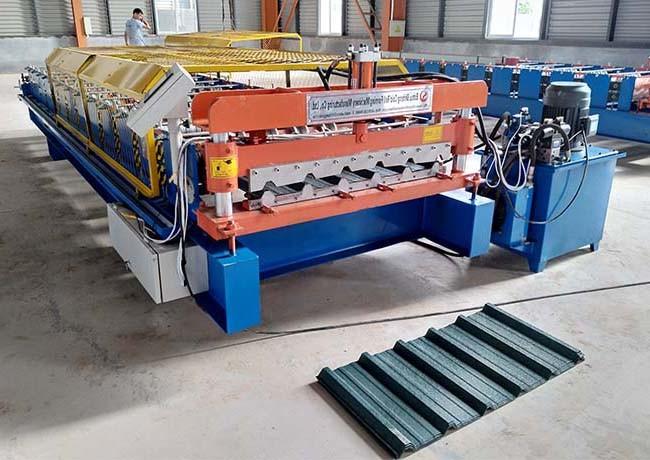

Machine pictures:
