Adjustable multiple models galvanized steel C / U / Z purlin roll forming machine with CE / ISO
Adjustable multiple models galvanized steel C / U / Z purlin roll forming machine with CE / ISO
1. Usage And Introduction Of This Production Line
Our own tooling center is equipped with CNC turning-lathes, Grinding machine for roller shaft, Heavy planing machine,etc,which allow us to complete the majority of our processing procedures on-site. So we can better control the machine quality and delivery time of machines.
Our range of products: sandwich panel production line, roof tile forming machine, cladding forming machine, metal decking forming machines,etc. We also can supply steel coils,EPS sandwich panels,PU sandwich panels to suit diverse requirements of our global customers.
| Hydraulic decoiler ( 5 Tons ) | 1 unit |
| Main Roll Forming Machine | 1 unit |
| Cutting Device | 1 unit |
| Electrical System with PLC Control | 1 unit |
| Hydraulic station | 2 unit |
| Auto stacker | 1 unit |
2. The roll forming machine parameters
| Suitable Material | Cold-rolled steel strip and heat-treated galvanized steel strip |
| Thickness of raw material | 1.5-3.2mm (235-345Mpa) |
| Size of C purlin | 100-305mm adjustable (special size available) |
| Material of roller | Cr12 mould steel being quenched treatment,HRC58-60 |
| Cr12 mould steel with quenched treatment, HRC58-60 | |
| Material of shaft | High quality 45# steel with heat treatment. |
| Roller grinder milling. | Cr12 mould steel with quench treatment, HRC58-60 |
| Power Requirement | Main motor power: 5.5X4 Kw(Depend on final design) |
| Hydraulic station power: 5.5Kw (Depend on final design) | |
| Diameter of shaft for rollers | 82mm |
| Controlling system | Mitsubishi PLC & converter |
Our equipment keeps a foothold in the domestic market, at the same time, we've developed international market in many countries. Having exported our equipment to Europe, Africa, South America, Russia, Burma, Pakistan, Sri Lanka, Uzbekistan and other countries and regions, we have received high praise from the foreign customers.
"The quality first, The prestige first" is the service aim of our company, we wish to customize the best machines for customers. So all stuff from SHITONG welcome anyone who are interested in our machines come to investigate and talk about cooperation.
4. The PLC control system of the production line
It adopts industrial computer to control.
The target piece’s length is adjustable and digit of it can be adjusted.
Computed mode has two Modes: automatic one and manual one. The system is easy to operate and use.
It contains programmer, transformer for the electronic machines and kits of every part.
Language screen:Chinese,English or Russian language .

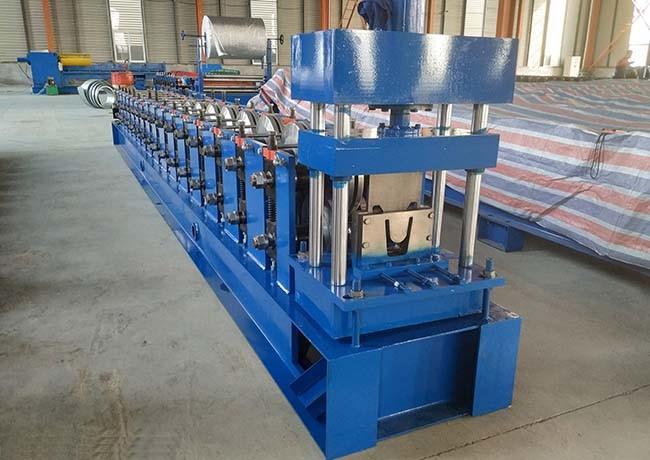

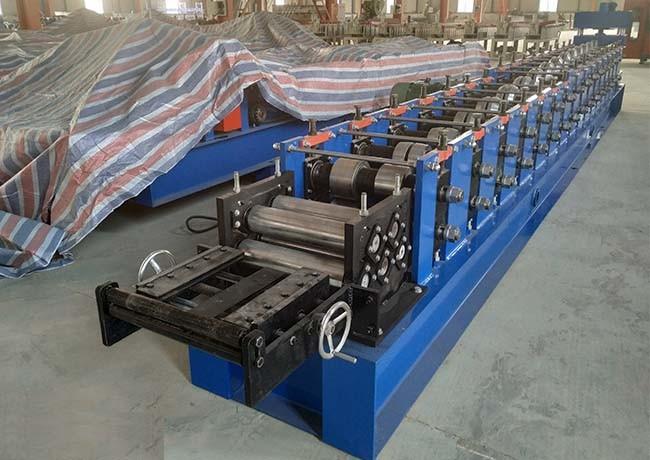

5. Roll forming machine pictures:
6. FAQ
6.1: If our country's voltage is different from yours, how to solve that?
A: The usual voltage is 380v,220v,415v. If yours are not one of them, we will design the electric motor to suit your voltage.
6.2: We bought your roll forming machine line, but we couldn't install and debug it?
A: Don't worry about that, when finished the machine, we will send you the manual book which shows you how to use the machine; if you still don't know, we can record a video to teach you how to operate the machine.
6.3: How can we be assured that you will deliver us quality machine with spare parts?
-1. Customers to send the technical people to our factory for checking the quality.
-2.We can send the technicians to the buyer`s factory for the installation of the machine.
