Weight 3.5T Color Steel Roll Forming Machine Under Frame 300H Beam Voltage 380V
Color Steel Rain Gutter Water Gutter Roll Forming Making Machinery
Type: Gutter Forming Machine
Production Capacity: 15-20m/min
Power(W): 4+4KW
Certification: CE/ISO9001
Condition: New
Place of Origin: Hebei, China (Mainland)
Model Number: Customized
Voltage: 380V 50Hz 3phases
Dimension(L*W*H): 8500*1000*1200
Weight: 4.5T
Product name: Color Steel Rain Gutter Water Gutter Roll Forming Making Machinery
Under Frame: 300H-beam
Forming Step: 16 Steps
Roller material: 45#steel Chrome Plated
Shaft material: 45# Steel Outer Diameter: 75mm
Driving Motor: 4KW with Shanghai Brand
Transmission Chain: 1 inch with Hangzhou Brand
Cutting blade material: Cr 12Mov processing
Usage: Water gutter,rain gutter on roof and wall
Production Speed: 15-20m/min
After-sales Service Provided: Engineers available to service machinery overseas
MACHINE PARAMETERS
| 1 | Suitable raw material | PPGI/PPGL/GI/GL Steel Coils |
| 2 | Thickness of coil sheet | 0.3-0.6mm |
| 3 | Feeding Coil width | 430mm |
| 4 | Effective width | 203.2mm |
| 5 | Under frame | 400H-beam |
| 6 | Diameter of Soild shaft | 70mm, high grade 45# steel,with keyway |
| 7 | Roller | 45# steel hard chrome coated 0.05-0.07mm |
| 8 | Thickness of middle plate | 18mm |
| 9 | Forming stations | 16 |
| 10 | Drive type | By chain(1.0 inch) link bearing model 6210 |
| 11 | Power of main motor | 3kw with Cycloidal reducer, Lichao, Shanghai |
| 12 | Power of pump station | 3kw, Lichao, Shanghai |
| 13 | Forming speed | About 15-20m/min |
| 14 | Hydraulic cutting | Controlled by PLC |
| 15 | PLC | DELTA, TAIWAN / Mitsubishi, Japan |
| 16 | Material of cutting blade | Cr12Mov, quenching 58-62℃ |

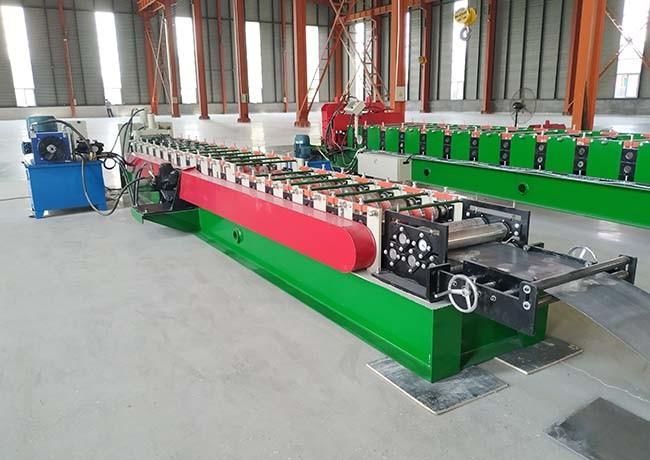

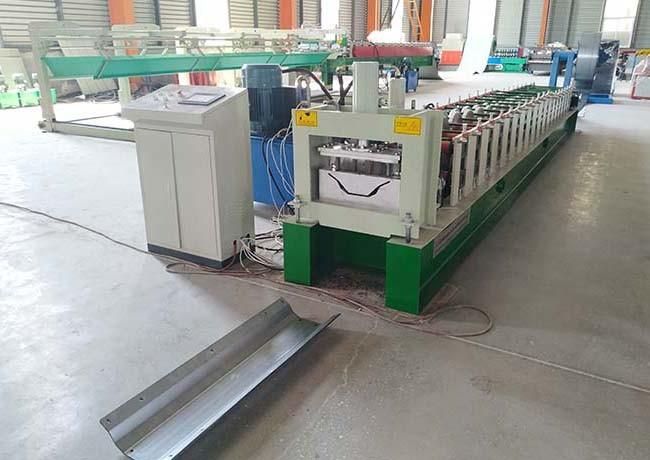

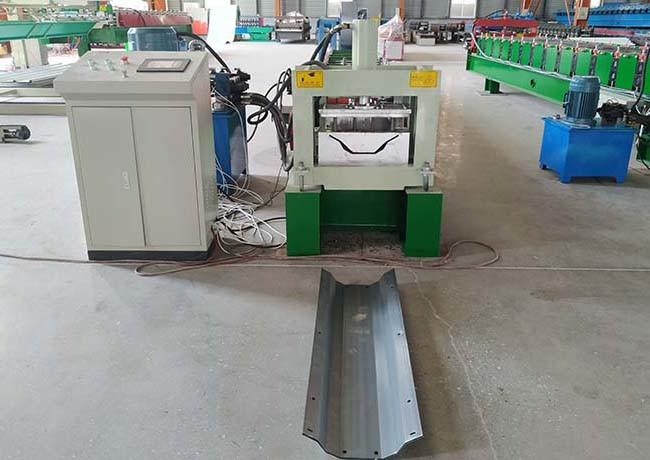

MACHINE PICTURES
