Diameter 95mm Floor Deck Roll Forming Machine Russian / European Style Pump Power 15kw
Russian type or European style galvanized steel sheet floor decking panels roll forming machine
1. Usage And Introduction Of This Production Line
The metal deck produced by floor decking roll forming line has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight of storey. With the same bearing capacity, it economized steel and cuts down investment accordingly.
We can also supply the customized machines.
Applications of Floor Decking Roll Forming Line:
The finished products are widely used in floor flat, after make embossing of the sheet, it will increase the strength between the steel and concrete, thereby increasing the floor of the fastness.
The components of the roll forming machine line includes:
| Hydraulic decoiler ( 5 Tons ) | 1 unit |
| Main Roll Forming Machine | 1 unit |
| Cutting Device | 1 unit |
| Electrical System with PLC Control | 1 unit |
| Hydraulic station | 2 unit |
| Auto stacker | 1 unit |
2. The roll forming machine parameters
|
Suitable steel plate
|
Type | Color steel plate |
| thickness | 0.3-0.8mm | |
| Feeding width | 1250mm | |
| Effective width | 750mm | |
| Production speed | 8-12m/min | |
| Roller stand | 27 rows | |
| Diameter | 95mm | |
| Main power | 22kw | |
| Pump power | 15kw | |
| Side panel of machine | 20mm | |
| Roller material | Carbon Steel 45# | |
| Blade material | Cr12, quenched | |
| Control system | PLC control | |
| Voltage | 380V 50Hz 3phases(changeable as needs) | |
| Main structure of the machine | 450mm H-Beam | |
We manufacture wide range products of metal sheet cold roll forming machine as follows: color steel roll forming machine, glazed tile roll forming machine, C/Z/U purlin machine for light steel structure building, floor deck machine, sandwich panel production line, fast guardrail forming machine, ridge cap forming machine and other automatic cold bending roll forming equipment. Our export team will listen to your request; the designed team will show you the best proposal according to your request, and we also have experts skilled workers offer precision work. Satisfactory solutions were provided to customers and established a long-term strategic partnership.
4. After sales service of the roll forming machine production line
1>. Free technical support and free accessories supply.
2>. Engineer available to service machinery overseas.
3>. One year warranty is provided.
4>. Long life technical guidance for free.
5>. We always offer technical support, quick response, all your inquire will be replied in 24 hours.

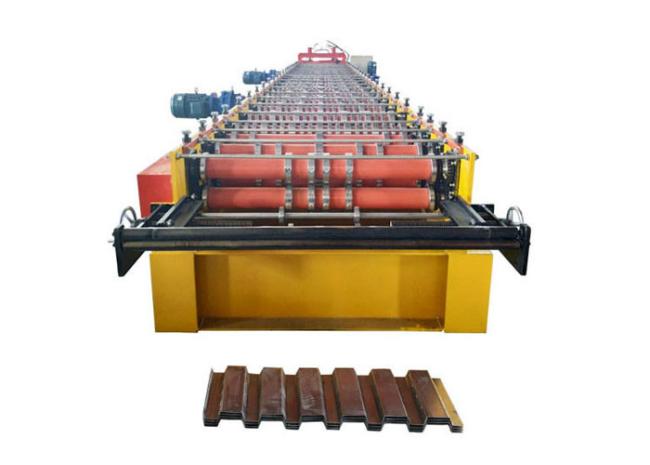

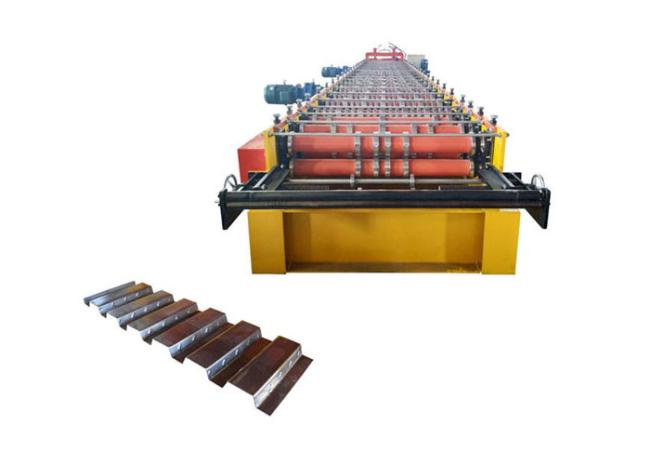

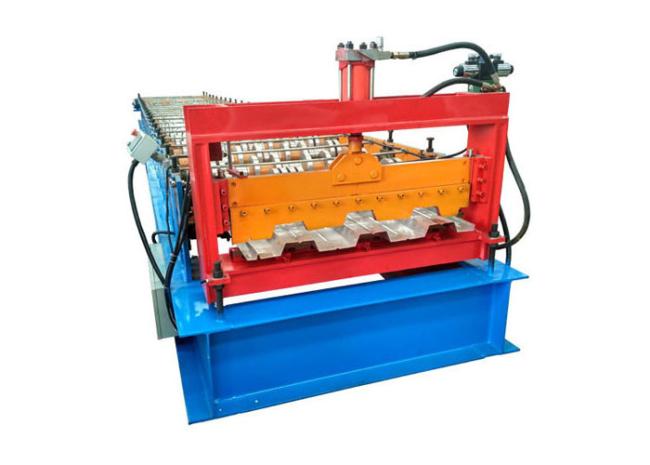

5. Roll forming machine pictures:
6. FAQ
6.1:What can you do if the machine broken?
A:Our machine's warranty period is 1 year,
if the broken parts can't repair,we can free send the new parts replace the broken parts to you except the solenoid valve,the solenoid valve you must pay the express cost yourself.
if after warranty period,we can through negotiation for to solve the problems,and we supply the technical support for the whole life of the equipment.
6.2:How many workers operate this machine to manufacture?
A:Only 1-2 worker is enough, the machine line is full automatic with PLC control system. After you set the order, the machine can produce automatically.
6.3: Can you make the machine according to my design or photo type?
A: Yes. We have an experienced team to work out the most suitable design and production plan for the machine.
