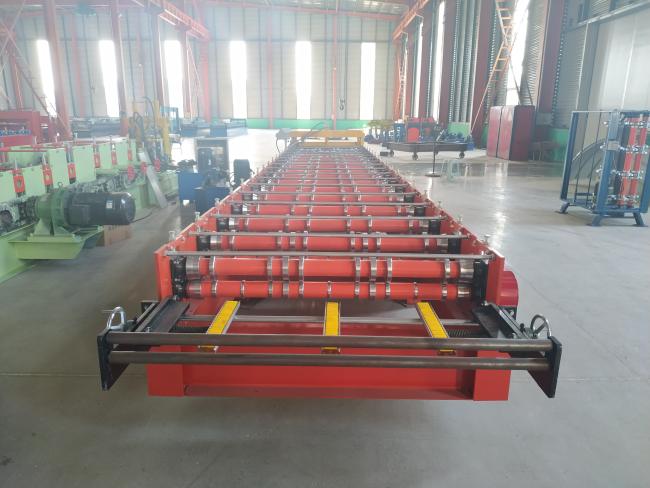

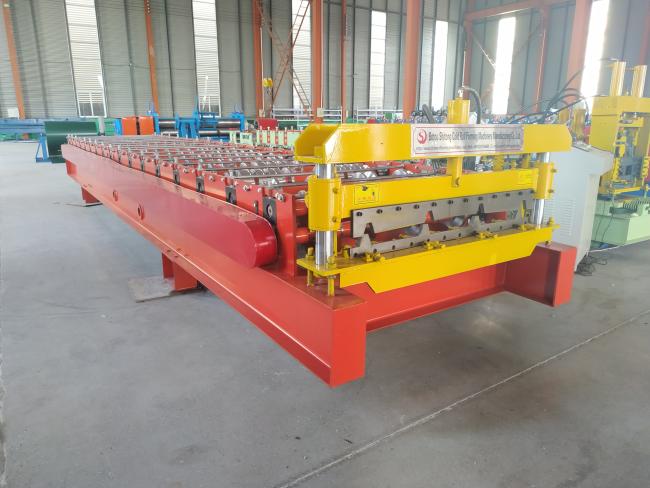

Color Steel Sheet Metal Roll Forming Machines Galvanized Bias Roof Making

Price Negotiable
Price: contact us
MOQ: 1set
Delivery Time: 38days
Brand: ST
Product Description


cheap ce standard metal roof color roll steel forming machine Galvanized Bias Roof Sheet making Machine

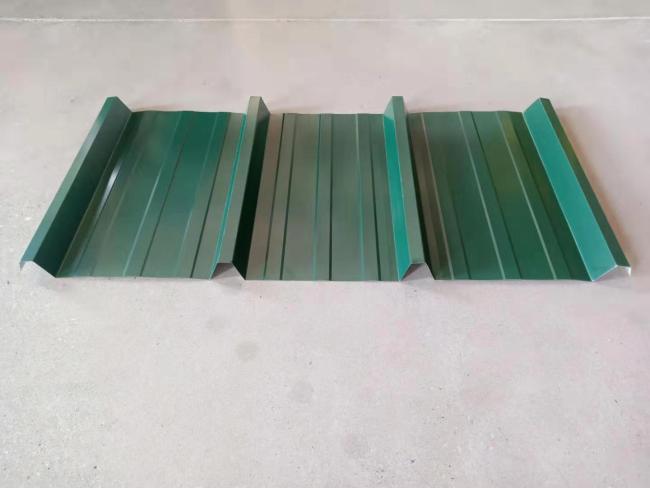

Usage Of Roof Panel :

The Steel Building Machine can produce various of steel roof and wall panel, it is a new building materials ,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period , beauty, light weight but high strength.


Our Metal Roofing Sheet Equipment Advantage

1. Good quality: We have a professional designer and experienced engineer team.And
the raw material and accessories we use are good.
2. Good service: we provide the technical support for whole life of our machines.
3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
4. Easy operation:All machine cotrolling by PLC computer controlling systerm.
5. Elegant apperance:Protect the machine from rust and the painted colour can be customized
6. Reasonable price:We offer the best price in our industry.

Parameter


Raw material
materialcolored steel sheet, galvanized steel sheet, aluminum sheet
thickness of coil sheet0.2-0.8 mm
material expand width1250mm
Efficiency width1000mm
Machine details
roller materialhigh grade NO. 45 forged steel with 0.05mm hard chrome plating
shaft materialhigh grade NO. 45 carbon wrought steel
cutting bladeCr12 mould steel with quenched treatment
diameter of shaft70mm or as your requirement
main frame300 H steel
forming steps17stations
productivity25m/min
hydraulic station power3.7 KW
hydraulic pressure10-12MPa
appearance size7700mm*1500mm*1500mm
hydraulic oil40# hydraulic oil
Electric tension380V 50 Hz 3 Phase or as your requirement
Cut ModeHydraulic forming after cutting off
Cutter materiaCr12 Heat Treatment
Electronic control systemPLC, Touch Screen, Encoding counter
ColorBlue, green or yellow or as your requirement
Rolling material45# steel,roller surfaces polishing, hard plating
