Light Gauge Steel Roof Truss And Track C Channel Forming Machine Automatic High Speed
automatic light gauge steel roof truss and track c channel forming machine
1. Equipment Detailed Parameters:
| suitable material | Galvanized Board, Aluminum Plate, color steel coils |
| Rows of rollers | 12 rows |
| sizes | 5*1.2*1.5m |
|
Total power |
4+4 kw |
| Thickness of raw material | 0.6-1.0mm |
| Productivity | 25-30 m/min |
| Diameter of shaft | ￠50mm |
| voltage | 380V 50Hz 3phases |

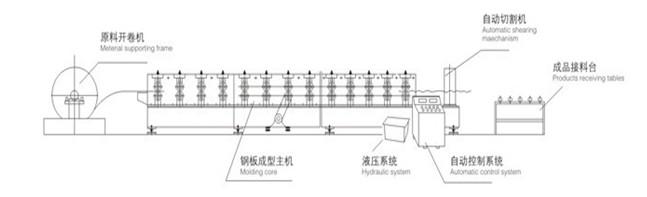

2. The Chart of Process Flow
Including: decoiler-feeding table- rolling- hydraulic system-control system-cutting part-discharge table
3. Main pics for machine

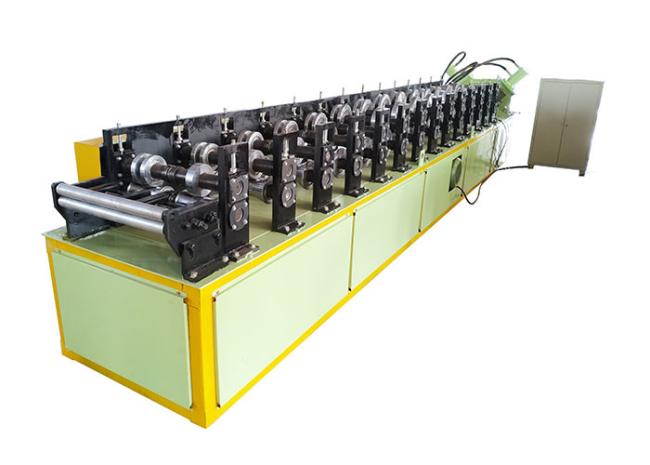

Material of rollers:45# steel,roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

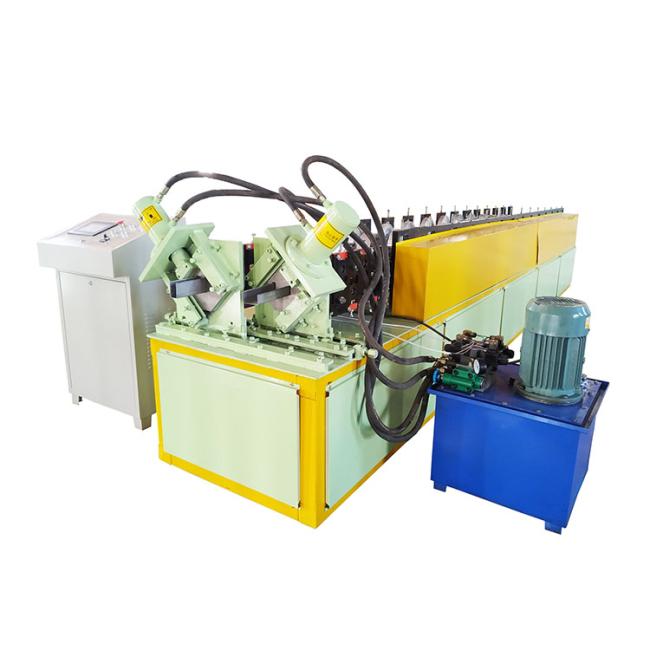

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment
Power:4kw,Hydraulic oil: 40#
Hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.
Computed mode has two modes: automatic and manual one. The system is easy to operate and use famous PLC.
