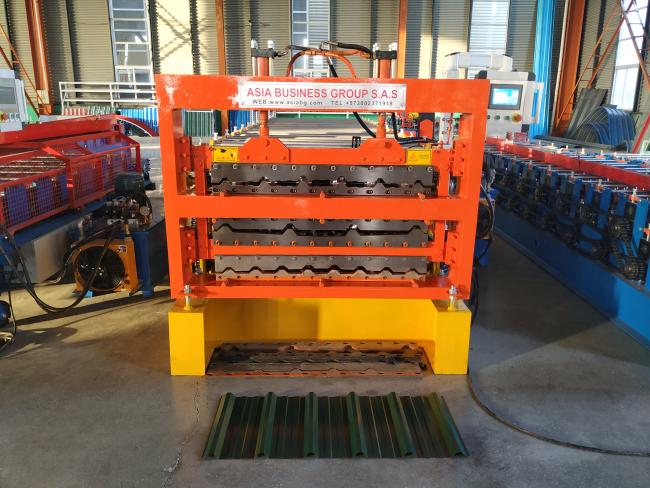

Roof Tile 1200mm 70mm Shaft Aluminium Roll Forming Machine

Price Negotiable

Price: Negotiate

MOQ: 1 set

Delivery Time: 30 work days

Brand: ST

Product Description

Steel panel steel sheet trapezoidal IBR metal roof making roll forming machine

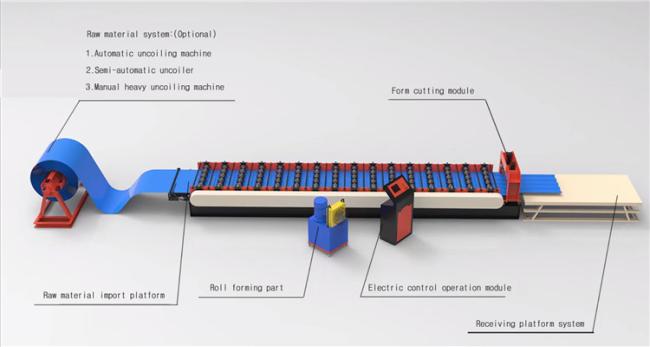

Production Process:

Uncoiling→ Feeding material into machine →Roll forming → Auto cutting →Products receiving

Technical parameters:

Suitable Material	Material	GI, PPGI, PPGL, Aluminum
	Width	1200 mm
	Thickness	0.3-0.8 mm
Material of rollers		High grade 45# forged steel, surface hard chromium plating
Rows of rollers		Up layer : 13 stations Middle layer : 12 stations Down layer : 13 stations
Material of shafts		High grade 45# forged steel
Diameter of shafts		70mm
Material of blade		Cr12 Heat Treatment
Cutting Mode		Hydraulic Guide Column
Speed		Up layer: 3-4 m/min Middle/Down layer: 10-15 m/min
Side plate thickness		16 mm
Chain size		1 inch
Total power		7.5 kw
Voltage		380V 50HZ 3Phase
Appearance size (About)		7000mm1500mm1600mm
Weight(About)		8 tons
Electronic control system		PLC + Touch Screen

Standard Configuration:

5 tons Manual decoiler	1 set
Main roll forming machine	1 set
Hydraulic pump system	1 set
PLC control system	1 set
Receiving Table	1 set
Spare parts	1 set

Manual Decoiler

Capacity	5T
Inner Diameter	450-550mm
Width	1250mm

Spare Parts

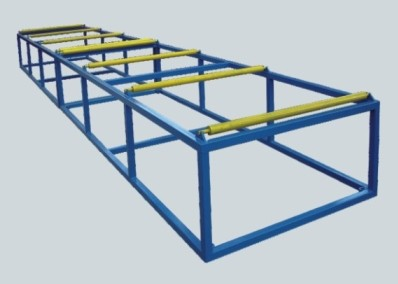

Receiving Table

Packing Method

Main machine is packaged with plastic film

Transportation

All machines need one 40 feet container to hold

Payment Term

30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment.

Delivery Time

Within 45 days after receiving deposit.

Warranty

Two years, and we will provide technical support for wholelife of the equipment.

If some parts of machine broken within 2 year, we will give customer the spare parts for free. (include chain, bearing, roller,oil pipe, counting wheel) If more than 2 year, maybe some spare parts need to be charged. If machine can not work well, we can teach them online until the machine is perfect. If you need, we can go to your place to assist you. But you need to provide the cost of the engineer.
